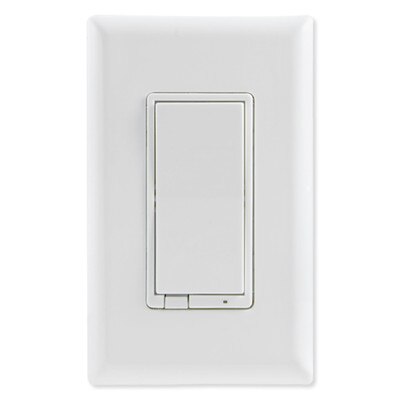

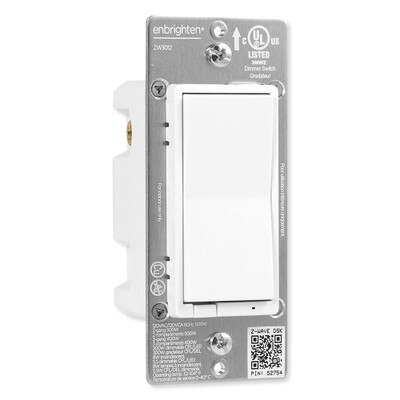

Enbrighten Z-Wave Plus v2 No-Neutral Smart Dimmer With QuickFit And SimpleWire, Gen7

Add Dim/Brighten Controls to Z-Wave 700 Smart Homes

Easily add smart dimming controls to your home lighting with the Enbrighten Z-Wave No-Neutral Smart Dimmer With QuickFit™ And SimpleWire™. This Z-Wave Plus connected dimmer switch adds remote and local Dim/Brighten control to connected lights and On/Off control over lower voltage devices. The Smart Dimmer can be included in multiple automation groups or scenes and a blue LED indicator helps guide you to the switch through the dark.

• Works with incandescent bulbs up to 600W and all LED and CFL up to 300W without requiring a neutral wire
• Repeats Z-Wave signals up to 150 ft (line of sight) to the closest Z-wave device
• Voice control compatible with Amazon Alexa and Google Assistant
• Suitable for single-pole or multi-pole applications
• Can be included in multiple automated groups or scenes
• Uses a standard decorative-size wallplate (sold separately)

The Enbrighten Z-Wave No-Neutral Smart Dimmer includes QuickFit and SimpleWire features:

QuickFit switches are 20% smaller than older switch models with no break-off tabs to remove, which makes them ideal for older-style switch boxes, multi-gang configurations, or any other application with limited space.

SimpleWire features include auto-detecting line/load terminals, which simplifies installation by detecting line and load wires and configuring the dimmer accordingly.

Installation Details

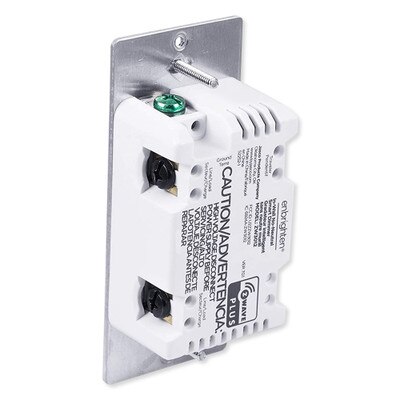

The Z-Wave No-Neutral Smart Dimmer supports single-pole or multi-pole applications, using up to four Jasco or Enbrighten model add-on switches in 3 or 4-way wiring configurations. This model can also be included in multiple zones/scenes. The switch requires standard screw terminal installation with wiring connections for Line (Hot), Load, and Ground.

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Notes

• For indoor use only.
• The switch is designed only for use with permanently installed fixtures.

Enbrighten: Leader And Innovator In Electronics

Enbrighten products are a subsidiary of Jasco, a leader in the design and development of home automation products and wireless accessories. Established in 1975, Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 52252
• UPC: 030878522526
• Color: White
• Size: 1-Gang
• Power: 120 VAC, 60 Hz
• Frequency: 908.4/916 MHz
• Load Ratings: 1-gang 600W, 2-gang 500W or 3-gang 400W incandescent, 300W CFL/LED
• Range: Up to 150 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
• Environmental Conditions: For indoor use only
• Operating Temperature Range: 32 to 104° F (0 to 40° C)
• Approvals: FCC, IC
• Warranty: 5 Year

»Enbrighten 52252 Z-Wave Plus In-Wall No-Neutral Smart Dimmer Installation Manual (.pdf)
