ELK 12VDC Power Supply/Battery Charger, 2.4A

Power Your Devices Intelligently and Efficiently

Ensure the connected devices and components in your structured wiring enclosure have sufficient power to run effectively with the ELK 12VDC Power Supply/Battery Charger, 2.4A, Kit. This kit combines a smart power supply with an intelligent charging board that work together to prevent connected equipment from malfunctioning due to low battery usage or deep discharge. The smart power supply provides a low battery supervision output when the battery voltage reaches 11 volts, and if the voltage drops to 9 volts the intelligent charger activates a low battery cutoff to keep connected devices from failing. The power supply is UL listed and features a built-in overload reset function and screw terminals for a DC output connection.

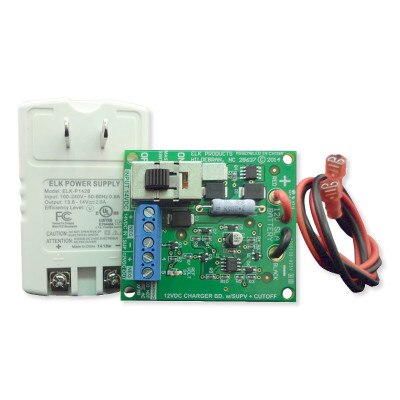

• Includes a smart power supply and an intelligent charger board
• Supply up to 2.4 Amps of current at 12VDC (nominal)
• Built-in battery charger circuit
• Low battery trouble output and deep discharge cutoff protection
• Manual on/off switch and built-in overload reset

Contents

• Plug-In Power Supply
• Intelligent Charger Board
• Instructions

Premium Products For Security & Automation

Elk Products designs and manufactures quality electronic equipment for the professional security alarm and home automation installer. Our products include siren drivers, speakers, relays, timers, programmable controls, surge suppressors, telephone equipment, amplifiers, recordable units, batteries and more.

• Manufacturer Part #: ELK-P1224
• UPC: 762158014215

Plug-In Power Supply (ELK-P1426)

• Input Voltage Range: 100 – 240 Volts AC, 50/60Hz
• Input Current: 0.8 Amps AC
• Output Voltage Range: 13.8 to 14 Volts DC
• Continuous Output Current: 2.6 Amps DC
• Size with Mounting Bracket: 3.07" x 2.83" x 1.5" (78 x 72 x 38 mm)
• AC Input Plug Style: NEMA 1-15P (non-polarized)
• Certification: UL 60950, Energy Star EISA Level V, RoHS (RoHS2-2011/65/EU)
• Other Features:
• Positive and Negative screw terminals on DC output
• Plug-in power supply with receptacle mounting bracket
• Warranty: Limited Lifetime

Circuit Board (ELK-P1224CB)

• Power Supply Input: 14 Volts DC provided by ELK-P1426
• Continuous Output Current: 2.4 Amps (Higher output current up to 2.5 Amps may be drawn for a short time provided a fully charged battery is connected)
• Low Battery Trouble: 11 Volts. (nominal)
• Low Battery Cutoff: 9 Volts. (nominal)
• PC Board Size: 2.25" X 2.5" (57.15mm X 63.5mm)
• Standby Battery Charging Capacity: 1 to 12 Ah, Sealed Lead Acid
• Battery Wire Length: 16" with F1-Faston No. 187 Receptacles
• Operating Temp: 32°to 120°F (0°to 48°C)
• Humidity: 95% RH (max.), non-condensing
• Features: Master Power Switch turns On/Off the DC Input and Battery
• Warranty: Limited Lifetime

»Elk ELK-P1224 Power Supply / Battery Charger Kit Installation Manual (.pdf)
