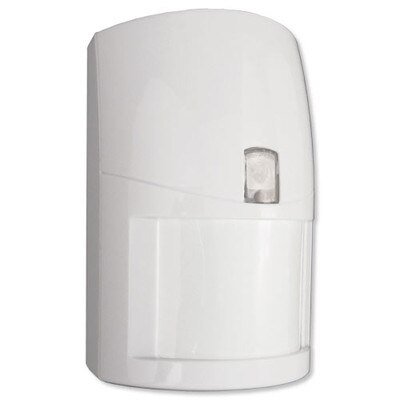

ELK 2-Way Wireless PIR Motion Detector, Pet Immune

SKU: ELK6030P

Order now and we'll ship same business day (if ordered before 3 pm PST).

$146.90

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Detects Motion Up To 40 Feet Away

Monitor activity inside your home or business without sounding false alarms by using the Elk Wireless PIR Motion Detector, Pet Immune. Perfect for families with small pets running around, the motion detector ignores small animals up to 40 pounds while still detecting humans.

  • Selectable coverage range up to 40 x 40 feet
  • Pet immunity up to 40 pounds
  • Two selectable sleep mode durations
  • Works with the Two-Way Wireless Transceiver

The motion detector offers advanced features that help ensure reliability, simplify installation, and allow versatile security applications. The high-quality dual element Pyroelectric sensor allows selectable coverage up to 40 x 40 feet, and an adjustable pulse count helps eliminate false trips.

Additionally, the detector's bright high-intensity white LED serves as a convenient indicator. By flashing, the LED clearly shows when the sensor is detecting motion. The LED can also be programmed to provide temporary night path lighting or to illuminate an area for assistance during installation.

To simplify installation, the detector allows you to remotely enable/disable Walk Test Mode from a keypad. The LED lights during momentary motion activation in Walk Test Mode.

Contents

  • PIR Motion Detector (6030P)
  • Standard swivel bracket
  • Locking disc, screws and anchors
  • Blanking plug
  • (2) Lithium batteries
  • Cover locking screw
  • Bracket screw

Premium Products For Security & Automation

Elk Products designs and manufactures quality electronic equipment for the professional security alarm and home automation installer. Our products include siren drivers, speakers, relays, timers, programmable controls, surge suppressors, telephone equipment, amplifiers, recordable units, batteries and more.

Specifications

  • Manufacturer Part #: ELK-6030P
  • UPC: 762158160257
  • Dimensions: 2.8(W) x 4.4(H) x 1.9(D) inches
  • Mounting Height: 6-1/2 to 7-1/2 feet
  • Sensor: Dual element pyroelectric
  • Bracket Screw: #4 x 3/8", pan head, sheet metal
  • Coverage:
    • Hi Range = 40 x 40 feet (12.2 x 12.2m) at 90 degrees
    • Lo Range = 30 x 30 feet (7 x 7m) at 90 degrees
  • Zones: 20 dual element zones (10 Long, 4 intermediate, 4 mid, 2 short)
  • Pulse Count: 1-2 or 3-4, selectable
  • Sleep Time: Selectable 30 sec. or 120 sec.
  • RF Signal Acknowledge Indication: Bi-Color LED
  • Security/Convenience Light: White LED
  • Warm Up Period: 10 seconds
  • Operating Voltage: 3.0 Volts DC
  • Battery Type: 2 x Lithium CR123A
  • Quiescent Current: <10 μA
  • Operating Temperature: 32 to 120 degrees F
  • Humidity: 95 percent RH (max.), non-condensing
  • Frequency: 902 – 928 Mhz channel hopping
  • Compatible Receivers: Elk M1 Controller, Elk Two-Way Wireless Transceiver (ELK-M1XRFTW)

Downloads

»Elk 2-Way Wireless Spec Sheet (.pdf)
»Elk ELK-6030P 2-Way Wireless PIR Motion Detector Spec Sheet (.pdf)
»Elk ELK-6030P 2-Way Wireless PIR Motion Detector Installation Manual (.pdf)
