  • ELK Plug-in Power Supply, 14VDC, 1.7A

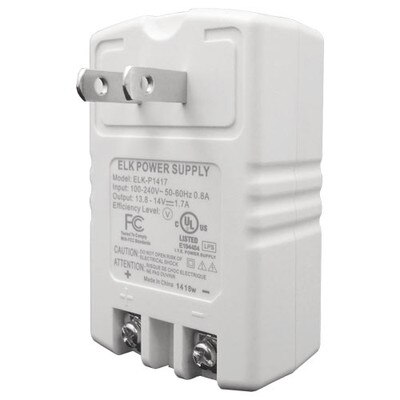

ELK Plug-in Power Supply, 14VDC, 1.7A

SKU: ELKP1417

Order now and we'll ship same business day (if ordered before 3 pm PST).

$22.86

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

14V Power Supply with Auto-Reset

The Elk Plug-in Power Supply (14VDC, 1.7A) has positive and negative screw terminal connections to deliver 1.7A/14VDC power to surveillance cameras, access control, alarm devices, and other security devices. The Power Supply has built-in overload reset to protect devices and provide reliable power. It comes with a mounting bracket for secure installation near your powered device.

  • Delivers 1.7A/14VDC power to security devices
  • Can auto-reset to provide overload protection
  • Includes mounting bracket for secure storage

Contents

  • Power Supply
  • Mounting Bracket

Premium Products For Security And Automation

Elk Products designs and manufactures quality electronic equipment for the professional security alarm and home automation installer. Our products include siren drivers, speakers, relays, timers, programmable controls, surge suppressors, telephone equipment, amplifiers, recordable units, batteries and more.

Specifications

  • Manufacturer Part #: ELK-P1417
  • Input Voltage Range: 100 – 240 Volts AC, 50/60Hz
  • Input Current: 0.8 Amps AC
  • Output Voltage Range: 13.8 to 14 Volts DC.
  • Continuous Output Current: 1.7 Amps DC
  • Approvals: UL Listed for US and Canada; Compliant with Energy Star EISA Level V; RoHS compliant (RoHS2-2011/65/EU)
  • Size: 3.07 x 2.83 x 1.5 inches (78 x 72 x 38 mm) w/ mounting bracket
  • AC Input Plug Style: NEMA 1-15P (non-polarized)
  • DC Output: Positive and Negative screw terminals
  • Warranty: Lifetime Limited
