  • RG6/U Dual Shield Coax Cable, 60% Braid, Plenum Rated, 1,000'

RG6/U Dual Shield Coax Cable, 60% Braid, Plenum Rated, 1,000'

SKU: WR18RG6PL10

Usually ships in 1-2 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$492.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

1,000 Feet of Dual Shield Coax Cable

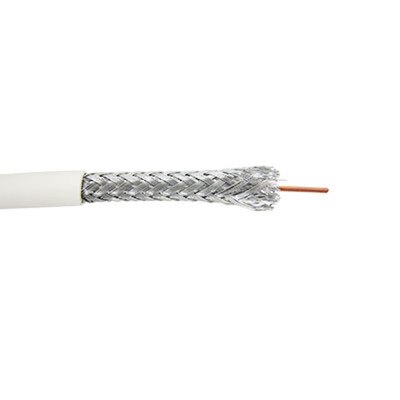

Ideal for CATV distribution, this RG6/U Coax Cable (Plenum Rated, 1,000') is dual shield with 60 percent aluminum braid and bonded aluminum foil. Plenum rated for use in air circulation spaces, the cable's co-polymer jacket meets low smoke and low flame requirements to reduce the spread of flames in the event of fire. The cable is designed for cable television (CATV), satellite (SATV), and antenna applications. Its conductor size is 18 AWG and impedance is 75 ohms. The cable comes in reels of 1,000 feet in a spool.

  • Plenum rated jacket meets low smoke and low flame requirements
  • Designed for antenna, CATV and SATV applications
  • AWG #18 solid copper clad steel center conductor
  • Foam polyethylene dielectric insulation (FEP Teflon) surrounds conductor
  • 100% shielded by bonded aluminum foil and 60% aluminum braid
  • Sweep tested to 3 GHz to ensure performance at applicable frequencies

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

Specifications

  • Manufacturer Part #: RG6/U-P
  • Cable Type: RG6/U Coaxial Cable
  • Conductors: 1 – 18 awg solid copper clad steel .004 inch (1.02 mm) nom.
  • Dielectric: 65 mil wall of foamed FEP Teflon to a nominal diameter of 0.17 inch (4.32 mm).
  • Shield: Aluminum/polypropylene low smoke plenum type tape with 25 percent overlap for 100 percent coverage.
  • Braid: Aluminum with 75 percent coverage.
  • Jacket: 17 mil natural colored 80 deg. C plenum rated, flame retardant, low smoke co-polymer to a nominal diameter of 0.232 inch (5.84 mm).
  • Print: Black ink: RG 6/U 18 AWG TYPE CL2P OR CATVP (UL) E179334
  • Nom. Impedance: 75 Ohms
  • Nom. Capacitance: 15.8 pF/ft (51.83 pF/m)
  • Nom. Velocity of Propagation: 84 percent
