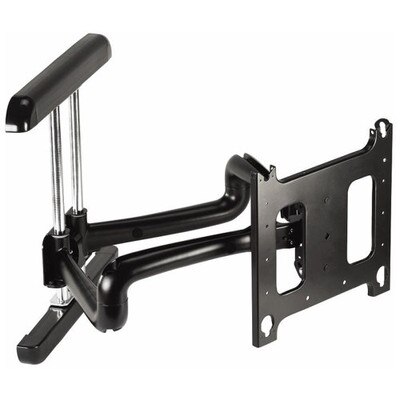

Chief P Series Swing Arm Display Mount, 37" Extension, 42-71"

SKU: CMPDRUB

Usually ships in 1-2 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$894.40

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Ensures Ideal Viewing From Any Angle

The Chief Manufacturing Universal Flat Panel Dual Swing Arm Wall Mount allows for perfect LCD or Plasma TV placement, and ensures ideal viewing from any angle. It features a Centris Technology tilt mechanism that adjusts to provide fingertip tilt with most flat panels. This mount allows for post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility. It extends 37 Inches (93.98 cm) for viewing from any angle, and remains low-profile in home position.

  • Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
  • Post-installation height adjustment up to 1 Inch (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37 Inches (93.98 cm) for viewing from any angle and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation

IMPORTANT NOTE: Chief Mounts products are not available to ship outside the U.S. Please contact Chief Mounts directly for international orders.

Designed For Perfect Flat Panel Placement – Without Cutting Studs

Chief's in-wall swing arms simplify installation. Their solutions allow perfect centering of a flat panel TV at any position within a 16" stud system. The patent-pending design uses a convenient mount template and eliminates the need to cut into studs or install headers.

Specifications

  • Depth From Wall: 3.4" (86 mm)
  • Extension: 37" (940 mm)
  • Tilt/Roll: +5° , -17° / ±2.5°
  • Swivel: up to 90° left/right
  • Height Adjustment: 1" (25 mm)
  • Lateral Shift: up to 9" (229 mm)
  • Mounts on Studs: 16" (406 mm) on-center with 4.5" (114 mm) left/right lateral shift
  • Dimensions (HxWxD): 22.04" x 39.5" x 3.4" (56 x 100.3 x 8.6 cm)
  • Color: Black
  • Weight Capacity: 200 lbs (90.7 kg)
  • Channel Size Width Each Arm: 0.63" (16 mm)

Downloads

»Chief PDRUB P Series Swing Arm Display Mount Installation Manual (.pdf)
