Channel Vision Crescendo On-Wall Dock Single Room Kit

Works With Any iPod

Create a whole-room audio system with your iPod. Including a pair of two high-performance in-ceiling speakers, an iPod docking station, an amplifier, and a keypad to control it all, this kit lets you blast iPod audio right out of your walls. The elegant docking station is designed to blend into any modern décor, and its built-in charger powers your iPod around the clock. Let the dancing begin.

• Whole-room audio system for your iPod
• Elegant docking station includes built-in charger
• Control audio with included keypad or a compatible remote (sold separately)
• Input for compatibility with Channel Vision’s CAT5 audio systems

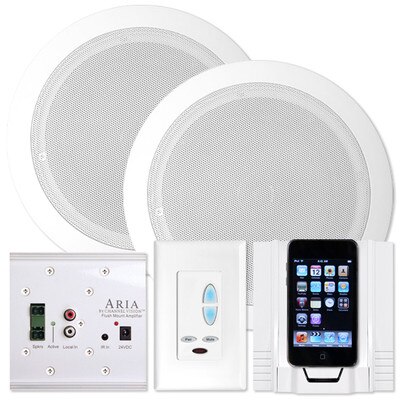

Kit Includes

• iBus Wall Dock for iPod (A0315)
• 100W Amplifier (A0350)
• Keypad Controller (A0129)
• In-Ceiling Speakers – pair (IC608)

Security & Home Theater Automation Experts

Channel Vision is a leading manufacturer of security cameras, audio/video distribution systems, and RF video distribution products. Channel Vision’s security products and home theater products are designed to make homes more convenient, innovative, and safe.

Product Features

iBus Wall Dock

• Local source dock with IR control and iPod charging
• Senses audio to automatically override the main audio source
• Supports IR control: compatible with A0505 or Apple remote
• Uses Cat5 cabling

Flush Mount Amplifier

• 100 watt integrated class D amplifier
• Pre-amp audio outputs for easy connection to powered subwoofer
• Local audio input to override the Cat5 audio input
• Input for compatibility with Channel Vision’s Cat5 audio systems

In-Ceiling Speaker

• 6.5" architectural speakers
• Polypropylene woofer with butyl rubber surround
• Small perforated designer grille
• Recommended Power Handling: 120 Watts (Peak)

Keypad Controller

• Single gang box installation, decorator style
• RJ-45 and screw terminals on back
• Built-in IR receiver distribution
• Essential control functions for one room

Technical Details

iBus Wall Dock

• Operating Voltage: 24VDC
• Cable Requirements: Cat5 or better
• Recommended Max. Cable Length: 250 feet
• Wire Type: 4-pair, UTP Category 5, 5e or 6
• Dimensions:
• Wall Dock (2-gang): 4.88(W) x 5.14(H) x 1.24(D) inches (front)
• Rear Depth: 1.56 inches
• Wall Dock and Keypad (3-gang): 6.73(W) x 5.14(H) x 1.24(D) inches (front)
• Rear Depth: 1.56 inches
• Color: White
• Operating Temperature: -10 to 50° C

Flush Mount Amplifier

• Power Input: 24 VDC
• Output Power: 50 watts/ch RMS into 6 ohms at < 10 percent THD
• Frequency Response: 20-20kHz (±3dB)
• Signal to Noise Ratio: > 85dB
• Input Sensitivity: 500m VRMS
• Auto on Threshold: 10m VRMS
• Storage Temperature: -40 to 85 degrees C
• Operating Temperature: 0 to 55 degrees C

In-Ceiling Speaker

• Frequency Range: 60Hz to 20kHz ± 3dB
• Power Handling: 120 Watts
• Drivers:
• 0.5" High compliance polymer tweeter
• 6.5" Polypropylene woofer
• Impedance: 8 ohms
• Finish: ABS plastic
• Dimensions: 9 inches OD. 3.15 inches Deep (Depth from surface of wall board)
