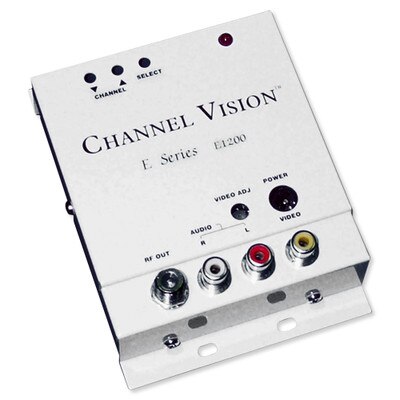

Channel Vision 1-Input Micro Modulator

SKU: CVE1200

Huge Savings! (All Sales Final.)

1 available at this price.

Pay in 4 interest-free payments. Learn More.

$62.00 $88.89

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

More Products by Channel Vision

Details

Boosts Signals To +25dB

The Channel Vision Micro Modulator, 1-Channel distributes a modulated channel of an incoming video source such as security cameras, VCRs, DVDs or other video/audio appliances. A built-in video amplifier boosts the signal to +25dB, providing powerful distribution suitable for most residential applications. The modulator also features immunity to brownouts, PLL crystal controlled oscillator circuitry for long life, no channel drift, and a wide channel range (UHF 14-78, Ultra band 65-135).

  • Pushbutton channel selector
  • Non-volatile memory
  • Unaffected by voltage brownouts
  • Wide channel range cable 65-135 (excluding 95-99) UHF 14-78

To enhance performance of the modulator, the unit should be combined with Channel Vision products such as passive splitters, HS-6 and HS-8, or powered distribution systems. Combining various distribution options with the modulator allows the combination of CATV or off-air signals to be sent with the output of the modulator, creating a total RF distribution system of incoming services and inhouse-created channels to every room within the system.

Security & Home Theater Automation Experts

Channel Vision is a leading manufacturer of security cameras, audio/video distribution systems, and RF video distribution products. Channel Vision’s security products and home theater products are designed to make homes more convenient, innovative, and safe.

Specifications

  • RF Modulator: PLL Synthesized Oscillator
  • Video: NTSC 0.4-2.7V Peak to Peak
  • Number of Channels: 1
  • Audio 1VRMS: L&R combined Mono
  • RF Output: 25dbmV max.
  • S/N ratio: > 52dB
  • Certifications: UL and CSA approved

Connectors

  • Video/Audio Inputs: RCA Female
  • RF Output: F Type Female
  • Bandwidth: 5-1000Mhz

RF Carriers

  • Frequency Stability: ±1Khz
  • Frequency Range: UHF 471.25-855.25Mhz
  • Ultraband: 469.25-859.25Mhz
  • Channels: UHF 14-78 / Ultraband 65-135 (except 95-99)
  • Channel Width: 6Mhz
  • Audio Offset: 4.5Mhz
  • Sidebands: Double

Spurious Output Rejection (non-harmonic)

  • Outside Carrier: +12Mhz Greater than 62dBC
  • Inside Carrier: +12Mhz Greater than 55dBC
  • Power Requirements: 12VDC at 250mA
  • Dimensions: 4.8(W) x 7(H) x 1.6(D) inches (12.1 x 17.8 x 4.06cm)
  • Weight: 2 pounds
