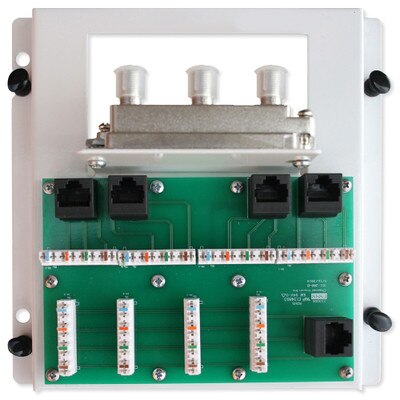

Channel Vision 4x4x4 Combo Module

Save Enclosure Space With A Combo Module

Great for applications that require high-bandwidth video streaming, the Channel Vision 4x4x4 Combo Module distributes data to four locations, and cable/antenna (RF) signals to four locations. It also allows you to distribute four "central office" (CO) phone lines to 4 locations each using 110 punchdown connectors. By combining distribution, the single module saves space when mounted in a Channel Vision structured wiring enclosure. It easily snaps in using push and lock pins.

• Distributes 4 antenna or cable signals to up to 4 locations
• Distributes 4 CO phone lines to 4 locations each
• Ideal for high-bandwidth video streaming applications
• Fits into any Channel Vision Structured Wiring Enclosure
• Compatible with category 5, and 5E wiring

Security, Home Theater, Automation Experts

Channel Vision is a leading manufacturer of security cameras, audio/video distribution systems, and RF video distribution products. Channel Vision's security products and home theater products are designed to make homes more convenient, innovative, and safe.

• Manufacturer Part #: C-0244
• 110 Connectors: 4 (all bridged), RJ-45 input
• Recommended Wire: CAT5 (22-24AWG)
• Wiring Standard: T568A
• Warranty: 10 Years

Data Distribution

• 110 Connectors: 4
• RJ-45: 1
• RJ-45 Configurations: T568B
• Compliant Standards: 10/100/350
• Wire Type: UTP Category 5 or 5E

4-Way RF Splitter

• Inputs: 1
• Outputs: 4
• Frequency: 5-1000MHz bandwidth
• Dimensions: 6.5(L) x 6.5(W) x 3(D) inches

»Channel Vision C-0244 Combo Distribution Module Spec Sheet (.pdf)
»Channel Vision C-0244 Combo Distribution Module Installation Manual (.pdf)
