Channel Vision 1x1 Amplified Coaxial Splitter Module

Amplify Signals In Long Coax Runs

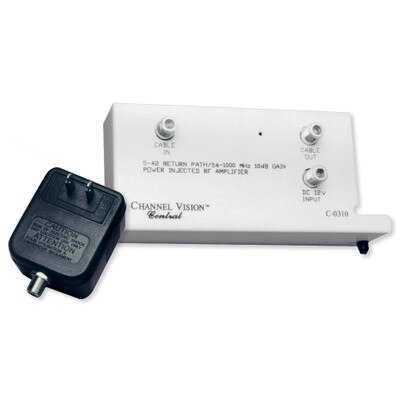

Strengthen incoming cable or antenna signals in longer runs using the Channel Vision 1x1 Amplified Coaxial Splitter Module. The 10dB amplified splitter mounts in a structured wiring enclosure using push and lock pins, and is powered by an external power supply that connects to the unit using a coax F connector.

• Bi-directional power can be injected down the coax
• 5-42MHz return path for interactive TV
• 54-1000MHz forward path
• Snaps into a structured wiring enclosure

For increased flexibility, you can optionally use a power injector to direct power down the coax line back to the amplifier from a remote location. This setup allows you to install the splitter module away from the power outlet.

Total Package Solution

Channel Vision has been a leading manufacturer of RF video distribution products, structured wiring enclosures and modules, security cameras, high performance audio/video distribution systems since 1993. Channel Vision manufactures a growing list of products designed to make today’s homes more convenient, safe, and innovative. Channel Vision Central – structured wire systems, Aria – multi-room audio distribution, and Channel Vision Technology – home-theater and security products, combine to make Channel Vision a total packaged solution.

• Bandwidth: 45-1000Mhz
• Gain: 10dB ±1.5
• Flatness: ±1dB
• Return Loss: 14dB
• Output Power: +10dB
• Dist. X-Mod.: -70dB
• CTB: -65dB
• Power Supply: 12V/55mA
