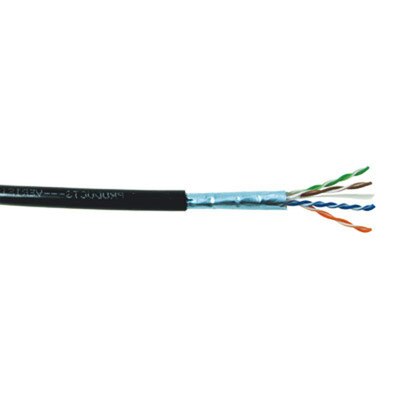

Cat5e Cable, Direct Burial, Shielded, Gel-Filled, 1,000'

Usually ships within 1-2 business days

SKU: WRCAT5EDBSH10B
$246.95

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Strong, Flexible Cat5e Cable Rated for Direct Burial

Ideal for carrying signals primarily used in structured wiring, computers, and networks, this Cat5e Cable (Direct Burial Shielded, Gel-Filled, 1,000',) is a twisted pair cable (350 MHz 24 AWG) with insulated solid bare copper conductors overall shielded by aluminum foil in a UV-resistant LLDPE jacket. The jacket is CMX rated for direct burial without conduit, providing high impact protection and superior puncture resistance to support underground wiring applications. The round, flexible cable also features mylar and water blocking tape for moisture resistance.

  • Cat5e cable in a UV-resistant LLDP jacket rated for direct burial
  • Gel-filled (flooded) to provide superior moisture resistance
  • Ideal for use in structured wiring, computers, and networks
  • Meets TIA/EIA 568-C.2 Cat5e and ISO/IEC 11801 Ed2 Class D standards
  • Shielded solid bare copper center conductor (24 AWG, 350 MHz)
  • High-density polyethylene (HDPE) insulation surrounds conductor

Because this model is gel-filled (flooded), it offers even greater resistance to moisture than the standard model. The cable includes a ripcord and the SCP Cable Labeling System with sequential markings for easy identification, and comes in spools of 1,000 feet.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

  • Manufacturer Part #: CAT5E-SH-DB
  • Description: CAT5E Shielded Direct Burial – 350 MHz 24 AWG Solid 4PR F/UTP, Gel Type, TIA/EIA 568-C.2, LLDPE JKT- Black- 1000 FT Spool
  • Regulatory: TIA/EIA 568-C.2 and ISO/IEC 11801 Ed2 EU RoHS 2011/65 EU Compliant
  • Application: LAN Cable
  • Marking: STRUCTURED CABLE PRODUCTS – – –CAT5E-SH-DB– – – CAT5E SHIELDED DIRECT BURIAL-350MHz 24AWG SOLID 4PR F/UTP GEL TYPE TIA/EIA-568-C.2 LLDPE JKT CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 ***FEET

Conductor

  • Material: Solid Bare Copper
  • Size: 24AWG X 4P
  • Construction: 1/0.51±0.004mm

Insulation

  • Material: HDPE
  • Min. Thickness: 0.250mm
  • Avg. Thickness: 0.265mm
  • Diameter: 1.05±0.1mm
  • Colors:
    • Blue: White-Blue
    • Orange: White-Orange
    • Green: White-Green
    • Brown: White-Brown

Shield

  • Jelly: Gel Filled
  • Wrap: PE Tape
  • Drain Wire (TC): 1/0.40±0.004mm
  • Shield: AL Foil

Jacket

  • Material: LLDPE
  • Min. Thickness: 0.54mm
  • Avg. Thickness: 0.60mm
  • Diameter: 6.20±0.20mm
  • Rip Cord: Nylon
  • Color: Black

Electrical & Physical Characteristics

  • Operating Temperature Range: -20° to 70°C
  • Conductor Resistance: Max 93.8 ohm/km at 20°C
  • Dielectric Strength: Min AC1.5KV
  • Minimum Flexing Bend Radius: >20x the jacket diameter
  • DC Resistance Unbalance: Max 5 percent
  • Pair-to-Ground Capacitance Unbalance: Max 3300pF/km
  • Characteristic Impedance: 100 ohms ±15 ohms
  • Nominal Velocity of Propagation: 67~69 percent
  • Propagation Delay: Max 536ns/100m
  • Delay Skew: Max 45ns/100m

Insulation

  • Unaged:
    • Tensile Strength: 16.5Mpa
    • Elongation: 500 percent
  • Aged:
    • Tensile Strength: 14.2Mpa (100°C 168h)
    • Elongation: 250 percent (100°C 168h)

Jacket

  • Unaged:
    • Tensile Strength: 13.8Mpa
    • Elongation: 100 percent
  • Aged:
    • Tensile Strength: 11.7Mpa (100°C 168h)
    • Elongation: 50 percent (100°C 168h)
