Bundled Cable (4 Cat5e), 500'

Usually ships within 3-5 business days

SKU: WR4CJ
$417.95

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bundle High Speed Data Transmissions Into A Single Cable

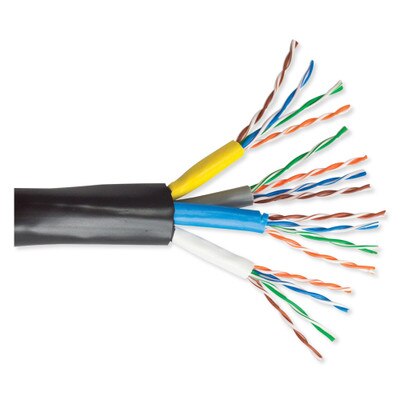

Add four Cat5e cables bundled into one with the Structured Cable Products Cat5e 4x, 24AWG, 350MHz, 500ft. This bundled cable product packages four (4) Cat5e cables within a black PVC jacket. This makes wiring easier and provides additional protection for the bundled ethernet cables.

Bundled Wire & Media Cable

Home Controls offers just about any cable or wiring you would need to connect your home systems. Choose from security wire, F-type coax, Cat5, Cat5e, Cat6, monster speaker cable and more. Home Controls also features several bundled cables. If you need help choosing the right wire, feel free to call our Technical Support Team at 1-800-266-8765 for free product advice!

  • Manufacturer Part #: HNC-10
  • Conductor (Cat5e):
    • Material: Solid Bare Copper
    • Size: 24AWG X 4P
    • Construction: 1/0.50±0.004mm
  • Insulation:
    • Material: HDPE
    • Min.Thickness: 0.188mm
    • AVG.Thickness: 0.20mm
    • Diameter: 0.9±0.1mm
    • Colors:
      • Blue: White/Blue
      • Orange: White/Orange
      • Green: White/Green
      • Brown: White/Brown
  • Assembly (4CAT5e):
    • Material: PVC
    • Min.Thickness: 1.05mm
    • AVG.Thickness: 0.60mm
    • Diameter: 5.20± 0.20mm
    • Rip Cord: Nylon
    • Colors: Black

Electrical & Physical Characteristics (Cat5e)

  • Operating Temperature Range: -20°C + 75°C
  • Conductor Resistance: Max 93.8 ohm/km at 20°C
  • Dielectric Strength: Min AC1
  • Insulation:
    • Unaged
      • Tensile Strength: 12.3Mpa
      • Elongation: 150%
    • Aged
      • Tensile Strength: 9.8Mpa (100°C 168h)
      • Elongation: 100% (100°C 168h)
  • Jacket:
    • Unaged
      • Tensile Strength: 13.8Mpa
      • Elongation: 100%
    • Aged
      • Tensile Strength: 11.7Mpa (100°C 168h)
      • Elongation: 50% (100°C 168h)
  • Rated Voltage: Max 300 Volts
  • DC Resistance Unbalance: Max 5%
  • Pair-to-Ground Capacitance Unbalance: Max 330pF/100m
  • Nominal Velocity of Propagation: 66%
  • Delay Skew: Max 45ns/100m
