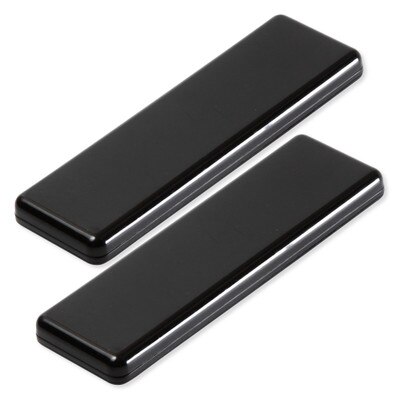

Autoslide Hand Wave Sensor, Twin Pack

Wave Open Sesame To Your Automated Sliding Doors

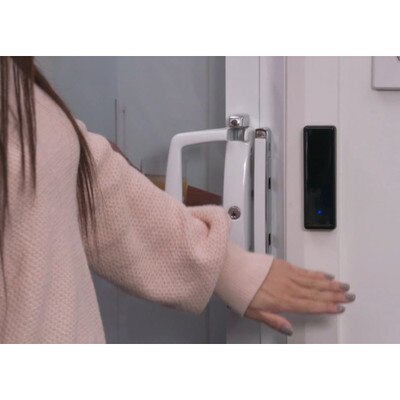

Open your Autoslide doors with a wave of your hand with the Autoslide Hand Wave Sensor, Twin Pack. This pair of RF sensors detects motion within 6 inches of the device, creating a touchless activation system. The Hand Wave sensor can connect to your Autoslide system via wired or wireless connection, with wired connections offering additional functionality.

• Detects movement up to 6 inches away from the sensor
• Delivers wired or wireless transmissions to Autoslide motor
• Wired connection offers compatibility with Pet Mode
• Up to 15 hand wave sensors and other transmitters can be included into a single Autoslide system
• Two operating modes with standard Autoslide Motors: Inside/Outside and Pet
• Three operating modes with Elite and Multidrive Autoslide Motors: Inside, Outside, and Pet

The Hand Wave Sensor has two settings when connected to standard Autoslide motors:

• "Inside" Or "Outside" will pair the button to the Inside or Outside frequency respectively, which will enable it to operate in Automatic and Pet Mode.
• "Pet" will pair the button to the Autoslide's Pet Mode, which will partially open the sliding door enough for a pet to walk through.

The Hand Wave Sensor has three settings when connected to Elite and Multidrive Autoslide motors:

• "Inside" will pair the button to the Inside frequency, which will enable it to operate in all four Autoslide Modes.
• "Outside" will pair the button to the Outside frequency, which will enable it to operate in Automatic and Pet Mode.
• "Pet" will pair the button to the Autoslide's Pet Mode, which will partially open the sliding door enough for a pet to walk through.

Contents

• Handwave Sensor
• 4'2" cable

NOTE: The Handwave Sensor can only trigger Pet Mode when hardwired to an Autoslide motor.

Automatic Sliding Doors For Your Home

Autoslide is recognized as an affordable, convenient, and practical solution for everyday's little inconveniences. It is a long awaited necessity for elderly and physically challenged, and a welcome convenience for pet owners who want less hassle when their pets want to come in and go out.

• Manufacturer Part #: AS087HWT
• UPC: 636836370811
• Sensor Cable Length: 4 feet 2 inches
• Warranty: 2-Year Limited

»Autoslide AS087HWT Handwave Sensor Installation Manual (.pdf)
