Splitter/Wallplate Pro (Original), Antronix Splitter Approved

SKU: AVADSWP3x

Please Select Option To View Availability

$9.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

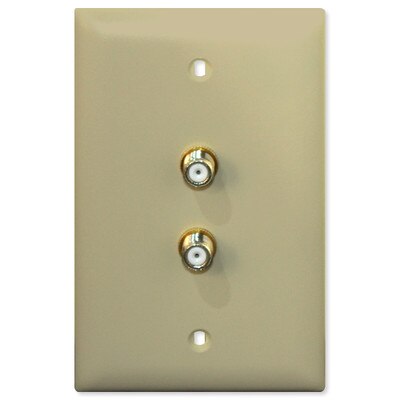

Wallplate with Built-In Antronix 1GHz Splitter

By combining the broadband industry's popular Antronix splitter with Advanced Dynamics' unique in-wall splitter design, the Splitter/Wallplate Pro - Original (Antronix Splitter Approved) gives installers the top-quality performance they need to meet the demands of today's advanced multimedia applications.

  • Features the renowned Antronix CMC2002H Splitter (1GHz)
  • Bi-directional for HDTV and Internet applications
  • Offers exceptionally high surge and corrosion resistance
  • Ideal for digital and cable modem installations
  • Flat 1 GHz bandwidth with minimal insertion loss
  • Approved by all major North American MSOs and Verizon FiOS

Like the standard Splitter/Wallplate, this Antronix-approved edition splits cable and satellite signals without a connector cable or an external splitter. And unlike the standard edition, this special model features the Antronix CMC2002H Professional Signal Splitter that many installers know and love.

The Splitter/Wallplate Pro is a two-way broadband-ready splitter that can be used for HDTV, satellite dish, and Internet modem/router installations. The coax cable inside your wall screws onto the back of the Splitter/Wallplate. Then, with the two included screws, you simply attach the wallplate to the wall.

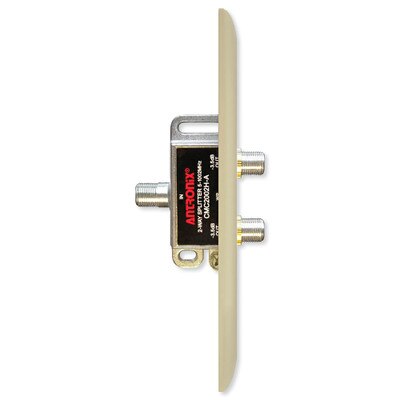

About the Built-In Antronix Splitter

Featuring a CMC2000 series digital splitter made by Antronix, this in-wall splitter is perfect for future-proofing multimedia applications. The Antronix CMC2002H Professional Signal Splitter uses high "Q" surface-mount technology (SMT) to ensure reliable performance over time, even when exposed to varied temperatures. Additionally, its field-proven plating alloy provides unparalleled corrosion resistance.

The splitter offers bi-directional functionality for HDTV and Internet connections. As an Antronix-approved passive device, it is tested and approved by all major North American MSOs and Verizon FiOS. It's ideal for digital and cable installations incorporating video, voice, and sensitive data, including QPSK and QAM.

Contents

  • Splitter/Wallplate Pro Original
  • (2) Mounting Screws

In-Wall Cable Splitters By Advanced Dynamics

Advanced Dynamics Corp gives professional installers the ability to split cable signals without "old school" techniques. As the leading designer of in-wall cable splitters, Advanced Dynamics delivers high-performance in-wall splitting for any cable application, digital or broadband. When you're splitting cable, rely on Advanced Dynamics for professional, advanced results.

Specifications

Product Features

  • SCTE-compliant machine-threaded F-ports, 15 PSI sealed
  • Port-to-port return band isolation: 40 dB
  • Output loss in return band: 35 dB
  • Low intermodulation design
  • 100-percent soldered back plate and Zinc alloy die-cast housing
  • All ports provide 6 kV ring wave surge protection

Technical Details

  • Manufacturer Part #:
    • Ivory: ADSWP3I
    • White: ADSWP3W
  • Type: Bi-directional
  • Wallplate Material: Nylon
  • Connector Pins: "F" connectors – 15 PSI sealed; 1 inch separated
  • Bandwidth: 5 MHz to 1 GHz (1002 MHz)
  • Nominal Impedance: 75 Ohms
  • F-Connector Type: ANSI/SCTE-01 (formerly SCTE IPS-SP-400) Compliant ECT F-Port
  • F-Connector Torque Specs: 30 in. lbs.
  • Surge Withstand: 6 kV Ring Wave Surge per IEEE C62.41 Category A3
  • Second Harmonic: -45 dBmV after Five 6 kV Ring Wave Surge with a +55 dBmV Return Input Carrier
  • Pressure Seal: 15 psi
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Corrosion Resistance: Meets SCTE/ANSI Specification
  • Certifications: Verizon FiOS approved; SCTE compliant; meets IEEE specification C62.41 Category A3
