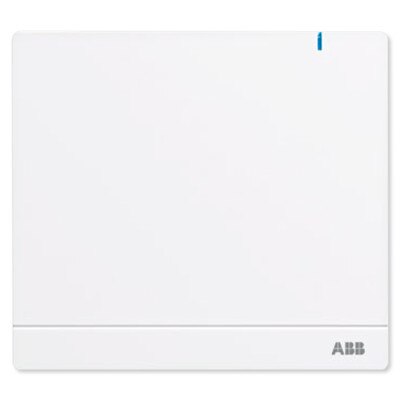

ABB-free@home System Access Point 2.0

Order now and we'll ship same business day (if ordered before 3 pm PST).

SKU: ABSAPS3US
$296.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Connect Your ABB Devices into a Single System

The System Access Point functions as the network hub for your ABB-free@home system. This intelligent network hub and access point connects all of your ABB-free@home devices and enables you to configure scenes and control individual devices from your local PC or smart device. The System Access Point uses If This, Then That (IFTTT) logic functions to program scenes and devices to automatically operate according to preset schedules or when entering your home.

  • Creates and supports the ABB-free@home system
  • Supports wired and wireless connections for up to 150 free@home devices
  • Remote control via web interface or ABB-free@home mobile app
  • Connects with ABB Welcome devices to communicate with door intercom stations
  • Schedule and automate scenes using IFTTT functioning
  • Supports 2.4 GHz or 5 GHz Wi-Fi and wired connections

ABB-free@home Wireless

ABB-free@home wireless provide the same level of functionality and security as wired ABB devices. Free@home devices utilize a wireless mesh network to ensure reliable communication amongst devices no matter the distance between any two communicating units. Each free@home wireless device acts as a signal repeater in addition to their primary function, extending signal coverage and preventing blind spots in the network from developing.

Installation Details

Connect the System Access Point to your Internet router via wired LAN or WiFi connection and enter the device's IP address into your Internet browser search bar. Once logged in and registered, you can begin configuring the Access Point and setting up your free@home system. The Access Point connects to registered free@home users' smartphones, tablets, or PCs via the online web portal or the ABB-free@home mobile app.

Contents

  • System Access Point 2.0
  • Mounting Base
  • (2) Wall screws
  • (2) Wall anchors
  • Wired Bus Connection
  • Power Supply Connection Terminal
  • Plug-in Power Supply with Adapter
  • Strain-relief bracket with 2 screws

NOTE: For indoor use only. Requires an Internet connection in order to operate.

ABB: Power & Productivity For A Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

  • Manufacturer Part #: SAP/S.3-US
  • Dimensions: 4.29 in (W) x 4.21 in (H) x 1.18 in (D)
  • External Wall Plug Power Supply: 24 VDC / 300 mA (enclosed, SELV)
  • DIN Rail Power Supply Operating Voltage: 24 VDC / 300 mA (SELV), NEC Class 2 (LPS)
    • Connection terminal: 0.8 – 1.0 mm (AWG 18 – AWG 20)
    • Line type: J-Y(St)Y, 2 x 2 x 0.8 mm
    • Wire stripping: 6 – 7 mm
  • free@home Wired Bus Voltage: 24 VDC via separate power supply
  • free@home Wired Bus Connection: 0.8 – 1.0 mm (AWG 18 – AWG 20),
    • Line type: J-Y(St)Y, 2 x 2 x 0.8 mm, Wire stripping: 6 – 7 mm
  • Processor: 1 GHz Dual Core Processor
  • Ethernet: RJ45
  • Protection Rating: IP20
  • Operating Temperature: -5°C – +45°C
  • Storage Temperature: -40°C – 70°C
  • USB-Port: 2.0
  • Total USB current: 500 mA

Wireless (WL)

  • Transmission protocol: free@home wireless
  • Transmission frequency: 2.400 – 2.483 GHz
  • Maximum transmission power: < 14 dBm

WLAN

  • Standard: IEEE 802.11 a/b/g/n/ac
  • Frequency range: 2.400 – 2.483 GHz. 5.100 – 5.725 GHz
  • Maximum transmission power: < 20 dBm
  • Certifications: RoHS, CE, ETIM
