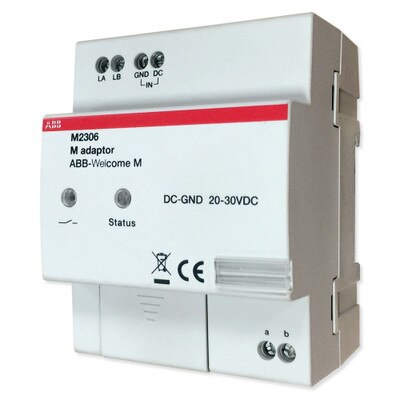

ABB-Welcome Elevator M Adaptor
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Connect the ABB Elevator Module to the Controller
The ABB Elevator M Adaptor is a required accessory for the ABB Elevator Lift Control Relay Module (M2307). The adaptor wires in between the module and the ABB System Controller (sold separately) to enable communication between the elevator and the controller.
The adapter is also used to configure settings for the module. It temporarily connects to a Windows PC, where you can customize operation using the free "ABB Welcome M PC Configuration Tool" software. After configuration, the adapter should be installed onto a DIN rail (not included) in the lift motor room on the top floor or the electrical riser.
NOTE: Requires 2-wire connection to a System Controller and the Elevator Lift Control Relay Module (M2307), both sold separately. Installation hardware not included. Requires a Window PC for configuration.
ABB: Power & Productivity for a Better World
ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.
Specifications
- Manufacturer Part #: M2306
- Operating Temperature: -13° to 131°F (-25° to 55°C)
- Protection: IP20
- Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 0.75 mm2
- Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 0.75 mm2
- Bus Voltage: 20-30VDC
- Size: 4 TE
- Dimensions: 3.54 x 2.83 x 2.56 inches (90 x 72 x 65 mm)
- Warranty: 2 Years
System Capacity
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
