ABB-Welcome Camera Interface

Connect Analog Cameras to the ABB Door Entry System

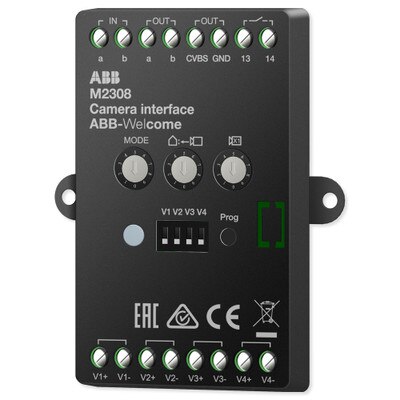

The ABB Camera Interface allows you to connect up to four third-party analog surveillance cameras to an outdoor station in your ABB Door Entry System. Once a camera is connected, its video feed can be viewed from a video indoor station or Guard Unit in the same way a Camera Module's video is viewed (Camera Module not required). The interface also supports input and output of the outdoor station's video signal to a third-party DVR during a call, while the video can be viewed simultaneously from a video indoor station.

• Connects up to 4 third-party cameras to an outdoor station
• Allows viewing from an indoor station or Guard Unit
• Can optionally send video a third-party DVR
• Surface-mounts or DIN rail-mounts

NOTE: Requires connection to an outdoor station. Does not include camera(s) or DVR. For use with analog cameras only. Does not support digital/IP cameras. Interface does not supply power; cameras and/or DVR require their own power supplies.

ABB: Power & Productivity for a Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

• Manufacturer Part #: 83327-500
• Operating Temperature: -13° to 131°F (-25° to 55°C)
• Protection: IP30
• Single-Wire Clamps: 2 x 0.28 mm² – 2 x 0.75 mm²
• Fine-Wire Clamps: 2 x 0.28 mm² – 2 x 0.75 mm²
• Bus Input Voltage: 20-30VDC
• Video Input: 1Vp-p, PAL/NTSC
• Video Output: 1Vp-p at 75 ohms, PAL/NTSC
• Interface to Camera: Coax cable, max 100m; Other cables, 10-50m
• Dimensions: 3.03 x 2.4 x 0.98 inches (77 x 61 x 25 mm)
• Warranty: 2 Years

System Capacity

• 9 Guard Units per System
• 60 Buildings per System
• 250 Indoor Stations per Building
• 9 Outdoor Stations per Building (including gate and other outdoor stations)
• 2 Locks per Outdoor Station

»ABB 83327-500 Camera Interface User Manual (.pdf)
»ABB Welcome Brochure (.pdf)
»ABB Welcome M Door Entry System Brochure (.pdf)
»ABB Welcome Door Entry System Manual (.pdf)
