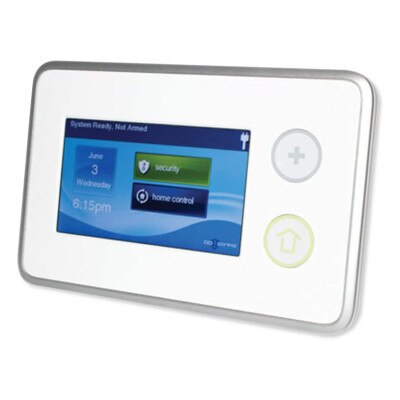

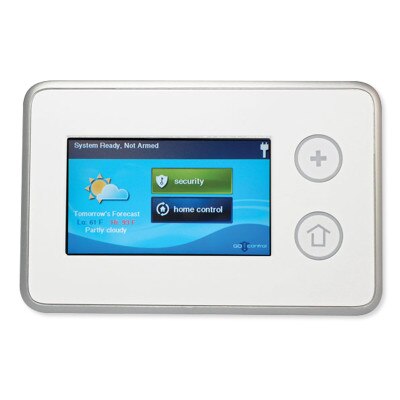

2GIG Wireless Touch Screen Keypad

Extra Control Panel for GoControl

Manage your GoControl security system from another location in your home with the add-on 2GIG Wireless Touch Screen Keypad. The keypad talks to your main GoControl panel to provide convenient access to all system features. It has the same intuitive user interface and provides system status, chimes, and alerts.

• Full color touchscreen interface
• Works with the GoControl panel
• Panel supports up to 4 keypads
• Wireless range up to 400 feet

Contents

• Touchscreen Keypad
• AC Power Supply
• AC Power Supply Bracket
• Screws and Anchors
• Installation Instructions

Note: Requires a GoControl panel running software version 1.8, and the 2GIG 900 MHz Transceiver (2GIG-XCVR2-345, sold separately). Not rated for outdoor use or UL 985 installations.

Innovation Drives 2GIG Technology

Now under Nortek's family of Linear products, 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-TS1-E
• Display: 4.3" QVGA full color
• Dimensions: 6.7(H) x 4.3(W) x 0.8(D) inches
• Wireless: 900 Mhz Frequency hopping bi-directional communication
• Range: 500 feet line of sight
• Power: 14 VAC using included AC adapter
• Speaker: Playback of locally stored annunciation messages, chimes and alarms
• Regulatory Approvals: FCC Part 15
• Warranty: 1-Year Limited

»2GIG 2GIG-TS1-E Wireless Touch Screen Keypad Instructions (.pdf)
