X10 PRO Inductive Fixture Module
XPXPFM
Designed for control over inductive loads such as, fans, motors and fluorescent lighting ...
Price: Out of stock
|
|
 Product Description
|

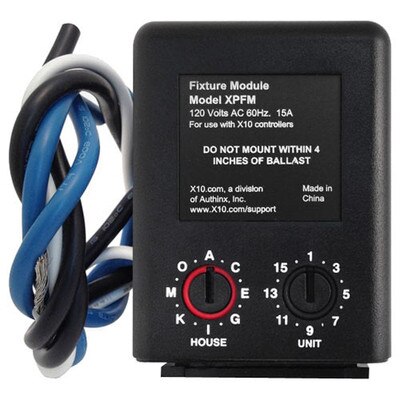

X10 PRO IN-LINE MODULE FOR INDUCTIVE LOADS
TAKES CONTROL OVER INDUCTIVE LOADS
Functionally equivalent to the XPXPFM in-line module but designed for control over inductive loads such as, fans, motors and fluorescent lighting. In line modules are generally mounted inside the light fixture or in a J Box. Responds to ALL LIGHTS ON/OFF code. Rated at 15A, 125V.
THE CONVENIENCE AND SECURITY OF X10
X10 is a powerline carrier (PLC) signaling language that enables control signals to be transmitted anywhere in your house over your existing 110V electrical lines. Simply plug in a controller (transmitter) at one electrical outlet and plug in a module (receiver) at any other outlet and you have remote control of that module! This enables you to have the remote and automated control of lights and appliances from anywhere on your property.
The convenience and security of controlling all your lights and appliances from anywhere in your house is simple and inexpensive. Turn On all downstairs lights with the touch of one button as you enter the front door, then push another button to turn On all upstairs lights. From another console at your bedside, turn Off all lights in the house with a single button, then turn On your electric space heater with another. When morning comes, a simple, plug-in timer console automatically turns Off your heater, turns On some soft music and starts your coffee maker. All easily done through the magic of X10 signals communicating from one device to another through your existing 110V household wiring system!
Keep in mind that your X-10 PROÖ System will always turn lamps and appliances on or off the instant you press the buttons. ThatÆs obvious - but there can be some unexpected consequences.
For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot may be damaged from overheating. If an electric heater is turned on by remote control while clothing just happens to be draped over it, a fire could result. Therefore, do not use with high power heating devices such as portable heaters.
Always be aware of what appliance you are turning on or off so that potentially dangerous situations will not occur.
|
Specifications
|
|
X10 XPXPFM In-line Module Data Sheet (.pdf)
- Note: Only for use in fixtures where 60 Degree C. wiring is permitted.
- Maximum ambient operating temperature: 140 Degrees F. (60 Degrees C.)
- The XPFM responds to ON/OFF and ALL LIGHTS ON/ ALL UNITS OFF.
- It does not respond to DIM commands.
|
|
