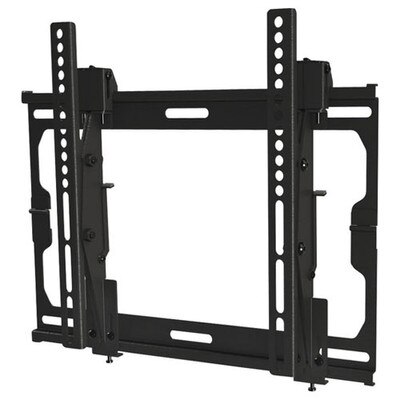

VMP Multi-Just Flat Panel Wall Display Mount with Tilt, 27-42"

Load Capacity Up To 100 Pounds

This multi-adjustable Mid-Size Flat Panel Flush Mount with Tilt holds most flat panels that measure 27-42". The mount features an adjustable tilt mechanism that allows -5 to +15° of tilt, while keeping your flat panel close to the wall. Its load capacity is 100 pounds.

• Holds most 27-42" flat panels
• Adjustable -5 to +15° tilt
• Installer-friendly kickstand for easy wiring
• Keeps the flat panel close to the wall

Installer-friendly features including list adjustment and a kickstand that aids in the wiring of the flat panel. Vertical and horizontal adjustment allows for perfect placement on the wall.

The mount is designed to attach to at least two studs up to 16" apart, or other suitable support surfaces. It is primarily composed of formed steel, and incorporates arc welds and security screws for durability. The tilt rails are capable of accommodating a maximum hole pattern of 415 mm wide and 345 mm tall. The mount is capable of adjusting vertically by 1" and ±3° post installation.

IMPORTANT NOTE: VMP products are not available to ship outside the U.S. Please contact VMP directly for international orders.

Compatible & Organized

Equipment and cable management issues continue to lead the list of challenges for professional installing rack-mountable electronics in small or enclosed spaces. Video Mount Products offers numerous solutions to help answer these concerns by providing easy-to-assemble rack products. Their offering of functional and compatible racks, shelves, brackets, mounts and accessories meet the challenges faced by such tight and component-laden low voltage installations.

• Dimensions: 19(W) x 15.75(H) x 2.3(D) inches
• Weight: 5.55 pounds
• Load capacity: 100 pounds
• Vertical height adjustment: 1 inch
• List adjustment: ±3 degrees
• Distance from wall to back of the flat panel: 2.3 inches
• Maximum flat panel hole pattern: 415 x 345 mm

»VMP FP-MFTB Mid-Size Flat Panel Flush Mount with Tilt Spec Sheet (.pdf)
»VMP FP-MFTB Multi-Just Flat Panel Wall Display Mount with Tilt Installation Manual (.pdf)
»VMP FP-MFTB Multi-Just Flat Panel Wall Display Mount with Tilt Technical Drawing (.pdf)
