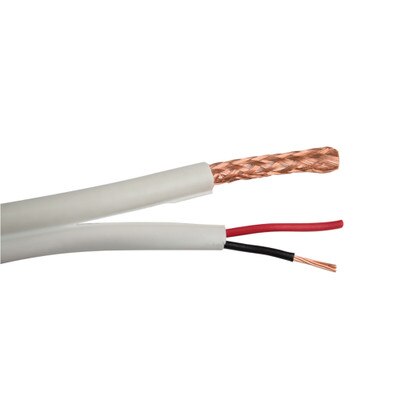

Siamese Cable (1 RG59/U Single Shield Coax, 1 Power 18/2), Plenum Rated, 1,000'

SKU: WR182RG59PL10

Usually ships in 1-2 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$613.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Coax & Power Cable for CCTV Applications

Perfect for video surveillance installations, this Siamese Cable (Plenum Rated, 1,000') has one RG59/U Single Shield Coax Cable and one 18/2 Power Cable bonded together for convenient, single-run wiring. Use the coaxial cable for video and the 18/2 cable to power your cameras. Plenum rated for use in air circulation spaces, each cable's co-polymer jacket meets low smoke and low flame requirements to reduce the spread of flames in the event of fire. It comes in spools of 1,000 feet.

  • 18 AWG/2C power cable bonded to RG59/U coax cable
  • Ideal for commercial or residential CCTV applications
  • Plenum rated jackets meet low smoke and low flame requirements
  • Coax with solid copper center conductor (20 AWG, 75 Ohm)
  • Foam polyethylene dielectric insulation surrounds conductor

The coax cable is single-shield with a 20 AWG solid copper center conductor, a foam polyethylene dielectric insulation surrounding the conductor, and a 95 percent copper braid shield to prevent interference.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

Specifications

  • Manufacturer Part #: RG59/U95-S-P
  • Type: RG59
  • Shield: 95 percent BC
  • AWG: 20 BC + 18/2 BC
  • Nominal OD:
    • Core: 0.138 inch
    • Cable: 0.190 x 0.350 inch
  • NEC Type: CMP
  • Nominal Impedance: 75 Ohm
  • Nominal Velocity of Propagation: 84
  • Nominal Capacitance: 15.8
  • NEC Articles: CL2P, CMP
  • Temp. Rating: 75°C
  • 7-9011: 150°C
  • Regulatory: RoHS Compliant, UL, cUL, ETL
  • Applications: Audio/Video, CCTV Transmission

Downloads

»SCP RG59/U-S-DB Siamese Direct Burial Coax Cable Spec Sheet (.pdf)
