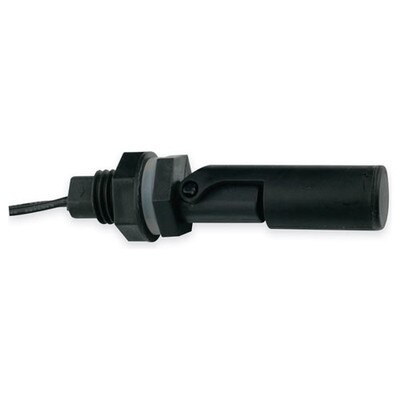

Sensaphone Float Level Switch Sensor

Versatile Level Control Sensor

Ideal for small tanks, the Sensaphone Float Level Switch Sensor monitors the water level of the tank. This sensor is specifically designed for applications where mounting to the sidewall of the tank is most convenient. When the water level significantly changes, the sensor signals your Sensaphone monitoring system.

• For level control applications in small tanks
• Mounts to the sidewall of the tank
• Rotates for N.O. or N.C. operation
• Internal reed switch is UL listed
• Works with any Sensaphone model

How It Works

The Float Level Switch Sensor features a small, lightweight float switch that floats in the water. When the water level decreases and allows the switch to drop within 0.25" (± 0.10") of the horizontal position, the reed contacts are joined together to trigger a closed-circuit signal. When the water level increases and pushes the switch to rise within 0.50" (± 0.10") of the horizontal position, the reed contacts are separated to trigger an open-circuit signal.

The switch is intended for Normally Closed operation, but can be used for Normally Open operation simply by rotating it. You also have the option of using two switches in one tank to monitor for different water levels. Set up one sensor to monitor for a high level and the other for a low level.

Contents

• Switch Sensor
• O-Ring
• Nut

NOTE: Requires a Sensaphone monitoring system.

IMPORTANT NOTE: This Sensaphone product is not available to ship outside the U.S.

Sensaphone Remote Monitoring Solutions

Unexpected events happen. But Sensaphone remote monitoring systems are on alert full time to notify you of threatening conditions, so you can respond quickly and prevent costly damages and disruptive downtime. From wireless capabilities to ultra-low temperature tolerant systems, you'll find the right Sensaphone for your monitoring needs. Start protecting your investments today.

• Manufacturer Part #: FGD-0222
• Operating Range: -10° to 80° F (-23° to 26° C)
• Contact Rating: 50W
• Max Switch Volt: 100VDC
• Connection: Hardwired
• Housing: Black plastic
• Dimensions: 3.5 x 1.5 inches (89 x 38 mm)
• Sensor Series: Contact Series
• Compatibility: 400, 800, 1400, 1800, 2000, 2800, StationSitter, Skymetry, Express II and SCADA
• Warranty: 1 Year Limited
