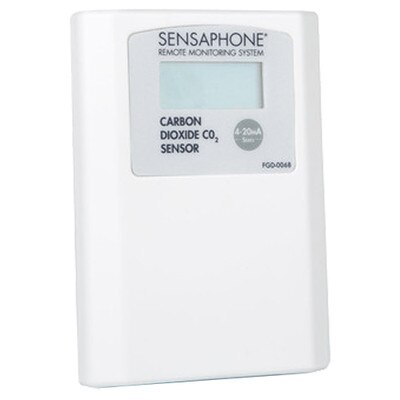

Sensaphone FGD-0068 Carbon Dioxide (C02) Sensor

Monitor Levels Of Carbon Dioxide From 0-2,000 PPM

The Sensaphone Carbon Dioxide Sensor allows you to monitor levels of carbon sioxide from 0-2,000 ppm with any Sensaphone that accepts a 4-20mA input signal.

Contents

• Carbon Dioxide sensor
• Installation instructions

NOTE: The sensor requires a 24VDC power supply (Part FGD-0053) to operate.

IMPORTANT NOTE: This Sensaphone product is not available to ship outside the U.S.

Sensaphone Remote Monitoring Solutions

Unexpected events happen. But Sensaphone remote monitoring systems are on alert full time to notify you of threatening conditions, so you can respond quickly and prevent costly damages and disruptive downtime. From wireless capabilities to ultra-low temperature tolerant systems, you'll find the right Sensaphone for your monitoring needs. Start protecting your investments today.

• CO2 Range: 0-2,000 PPM
• Accuracy: ± 50 PPM
• Operating Temp Range: 32° to 122° F (0° to 50° C)
• Response Time: 2 Minutes for 90% step change
• Housing: White plastic
• Compatibility: Sensaphone 1400, 1800, 2000, 2800, Express II, SCADA 3000 and WEB600

»Sensaphone FGD-0068 Carbon Dioxide (C02) Sensor Spec Sheet (.pdf)
