Price: $369.95

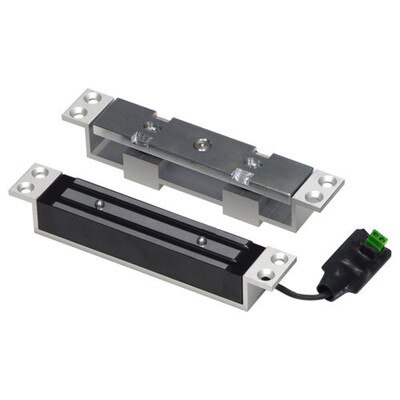

SECO-LARM ENFORCER ELECTRIC SHEAR LOCK, FAIL SAFE

FEATURES A SMALLER SIZE FOR USE WITH MOST METAL DOOR JAMBS

The Seco-Larm Enforcer Electric Shear Lock provides concealed security for remote access and exit control of aluminum and steel doors or gates. It works with sliding, single-action, and double action (swing-through) doors and gates. This lock features Spring loaded locking bolts and magnetic bond to hold doors securely in place with approximately 1,500 pounds (680 kg) of shear holding force. It is Fail-safe (unlocks if power is lost).

BUILDING A SECURE FUTURE SINCE 1971

SECO-LARM started as a developer of lighting devices in 1971. However, the company foresaw the need for reliable yet affordable security products, and over next few years established SECO-LARM as a leading multinational OEM and private label manufacturer of equipment for some of the best-known companies in the security business.

Enforcer Electric Shear Lock Manual (.pdf)
Enforcer Electric Shear Lock Spec Sheet (.pdf)

Features:

• Concealed security for remote access and exit control of aluminum and steel doors or gates.
• Smaller size for use with most metal door jambs.
• Zinc-plated magnet and armature, aluminum anodized housing.
• Works with sliding, single-action and double-action (swing through) doors and gates.
• Use with an optional digital keypad for keyless high security.
• Easily connects to SECO-LARM’s SK-983A Electronic Keypad.
• Spring-loaded locking bolts and magnetic bond holds doors securely in place with approximately 1,500 pounds (680kg) of shear holding force.
• Fail-safe operation (unlocks if power is lost).
• Armature plate adjusts to compensate for gaps between door and frame.

Specifications

• Operating Voltage: 12VDC or 24VDC
• Current Draw: 420mA/12VDC, 210mA/24V
• Door Gap: Max. 1/16" (2mm)
