Seco-Larm Enforcer CBA Wireless Alert System

Expandable Kit for Wireless Home Alerts

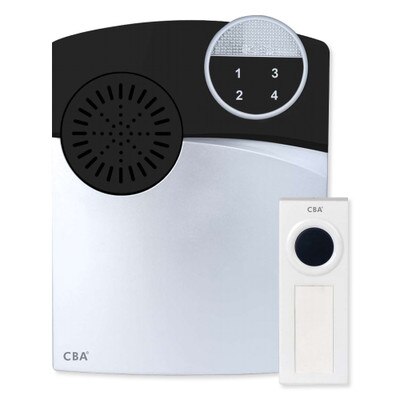

Suitable for use as an emergency alert system, or a wireless doorbell, the Seco-Larm Enforcer CBA Wireless Alert System is a complete alert kit that comes with a wireless button and a wireless receiver to alert you when the button is pressed. Because the receiver can pair with up to four wireless transmitters total, the system is expandable to serve other functions, such as motion detection, door monitoring, and more.

• Wireless button triggers alert at receiver when pressed
• Receiver supports up to 4 wireless "RA-4961" series transmitters
• 3 alert modes: Alarm & Vibrate, Vibrate Only, or Alarm Only
• Choose from different alarm sounds, selectable for each transmitter
• Wireless range up to 1,000 feet between receiver and transmitter
• Beeps when battery level is low; LEDs indicate transmitter low battery

With three alert modes, the receiver can provide vibrating alerts only, audible alarms only, or both vibrations and alarms. It also offers several different alarm sounds, programmable for each individual transmitter, so you can differentiate between various alerts.

Installation Details

The Wireless Alert System is designed for easy DIY setup. The receiver can be worn as a belt-clip or nail-mounted to a wall, and is powered by either batteries or a plug-in power adapter (not included). The button is powered by the included battery and easily mounts to a flat surface with two screws (not included).

Contents

• Wireless Receiver (RA-4961Q)
• Wireless Pushbutton (RA-4961-PBQ)
• CR2032 Battery
• Instruction Manual

NOTE: Mounting hardware not included. Battery and power supply not included for the Wireless Receiver.

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: RA-4961-K1Q
• Approvals: FCC, RoHS
• Warranty: 1-Year Limited

Wireless Receiver (RA-4961Q)

• Frequency: 914.8MHz
• Channels: 4
• Accessories per Channel: 1
• Relay Output (Channel 4 only): 1 (Form C Relay), 1A @ 50VDC
• Power Supply: 3 "C" batteries or 6VDC power adapter (both not included)
• Estimated Battery Life: 270 days (3 triggers/day)
• Low Battery Indicator:
• Receiver: Notification LED flashes every 5 seconds
• Accessory: Zone LED for accessory blinks continuously
• Sound Level: Up to 96dB @ 1 foot (30cm)
• Operating Temperature: 32° to 140°F (0° to 60°C)
• Dimensions: 5-1/4 x 1-9/16 x 6-5/8 inches (133 x 40 x 169 mm)

Wireless Pushbutton (RA-4961-PBQ)

• Frequency: 914.8MHz
• Transmission Range: Up to 1,000 feet (305m)*
• Channels: 1
• Power Supply: CR2032 Battery (included)
• Estimated Battery Life: 400 days (3 triggers/day)
• Low Battery Indicator: Zone LED on receiver blinks continuously
• IP Rating: IP45
• Operating Temperature: -4° to 140°F (-20° to 60°C)
• Dimensions: 1-5/16 x 11/16 x 3-7/16 inches (34 x 18 x 87 mm)

*Line of sight. Transmission range will vary depending on installation and operating environment.
