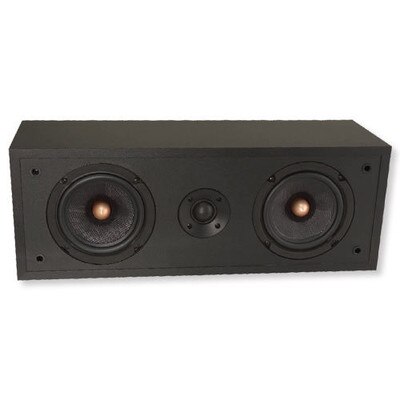

Presence Center Channel Loudspeaker, 5.25 Inch
OEA525CC
The OEA525CC has been optimized for high fidelity home theater applications, primarily as a center speaker. It will function equally well when >>>
Price: $224.95
|
|
 Product Description
|
PRESENCE A525CC CENTER CHANNEL LOUDSPEAKER
HIGH FIDELITY HOME THEATER
The OEA525CC has been optimized for high fidelity home theater applications, primarily as a center speaker. It will function equally well when used for left and right front/surround. The broad dispersion design does not limit the sweet spot to just one seat in the center of the room but provides a large sound field from which to enjoy music and video soundtracks. The A525CC also performs well in high fidelity audio applications for the primary stereo channels.

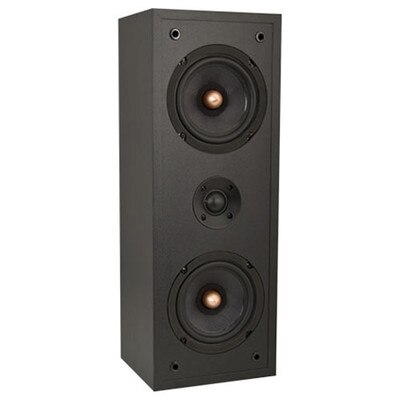

For most center channel applications the speaker will lay horizontally either beneath or above the video display. Some screens may be acoustically transparent and allow the speaker to be placed behind the screen. The center speaker can be oriented vertically if desired. Due to space constraints this is not usually done for the center channel but is usually done for the main and surround channels.
Significant bass emphasis can occur when a speaker is placed in a corner or in a cabinet. In some cases this is desirable. However, if too much bass emphasis occurs then it may be necessary to reduce the low frequency information to the speaker. This is best done using the tone controls if a subwoofer is not present in the system. However if a subwoofer is present then this is best done by selecting a filtered high-pass output to the primary speakers. This is an available feature in most modern home theater receivers.
Though the A525CC can be used without a subwoofer it is ideally suited for use with a subwoofer. When setting up the A525CC speakers with a subwoofer in a home theater application we recommend the following receiver settings:
- Subwoofer (Low Pass) cutoff: 70-110Hz
- Main, Center, and Surround Speakers: 80-120Hz (small or mid size speakers)
A higher crossover frequency will allow the A525CC speakers to play louder without overdriving its 5.25" woofers but the upper bass response of the system may diminish depending on the rate of roll-off. These upper bass frequencies can be reproduced by the subwoofer but the bass may sound detached if the subwoofer is not placed in close proximity to the main speakers. Every system and environment is unique; experiment to determine what works best in yours.
PRESENCE HOME THEATER SPEAKERS, FROM OEM
OEM Systems Company is a manufacturer of Presence Loudspeakers for residential, commercial and institutional applications.
Great designs and great materials are the two ingredients that go into great loudspeakers. Like so many other things, it is just that simple. Well-known brand name loudspeakers have one additional ingredient: advertising. OEM does not advertise. OEM passes this tremendous savings on to customers and let the products speak for themselves.
|
Specifications
|
|
- 5-1/4" 2-way MTM Center Channel Loudspeaker
- Equally suitable for Left/Right primary and surround channels
- Frequency response: 80Hz-20kHz
- Power handling: 60 watts RMS, 120 watts Max
- Sensitivity: 89dB 2.83V / 1 meter
- 8 ohms nominal, 6 ohms minimum
- Overall dimensions: 18-5/16''W x 6-11/16''H x 6-5/8''D (Including Grille)
- (465mm W x 159mm H x 168mm D) (Including Grille)
- Dual 5-1/4'' Magnetically shielded Kevlar Woofers with butyl rubber surrounds
- Silk dome ferro-fluid cooled tweeter with acoustically optimized aluminum baffle
- Non-reflective-black MDF cabinet
- Gold spring-post connections that accept up to #10 wire & dual banana plugs
|
|
|
|
|
|
|
|
