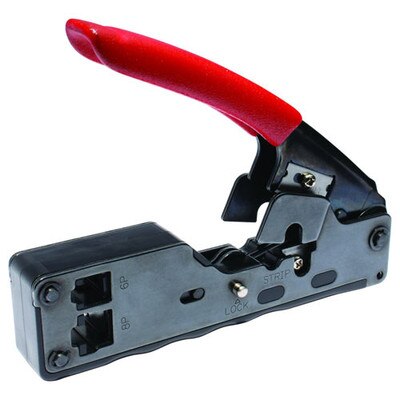

Platinum Tools Tele Titan Modular Plug Crimp Tool
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Compression-Style Crimp Tool With Full Vertical Force
Designed to work like a coax compression tool, the Platinum Tools Tele-Titan Modular Plug Crimp Tool offers true straight action termination for modular plugs in a compact, easy-to-use tool. The Tele-Titan can be used to terminate various WE/SS standard style modular plug connectors, both stranded and solid, at industry-specified crimp heights.
- Terminates RJ11, RJ12, and RJ45 connectors
- Built-in cable cutter and stripper
- Rugged construction for repeated use
- Stays securely closed with "gun safety" lock
- Fits in your pocket or tool belt
The tool's full vertical crimp force delivers precise terminations by placing balanced pressure on each of the connector's pins. Only minimal force is required to finish a crimp.
The Tele-Titan also features a built-in cable cutter, as well as a built-in cable stripper for round and flat cables. The stripper has an adjustable blade, so you can easily control depth when stripping Cat 5e/6 cables.
Applications
- RJ-45 Cat 3/4/5/5e/6 (8x8)
- RJ-12 6-position (6x6)
- RJ-11 4-position (6x4)
- RJ-11 2 position (6x2)
Note: Not for use on AMP/TYCO style plugs.
Platinum Tools Makes Connections Easy!
Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of our products absolutely must satisfy three critical benchmark criteria – Utility of function, Quality of function, and Economic value.
Specifications
- Body Material: ABS integrated parts integrated with S45C carbon steel frame
- Hardness: HRC 42±4
- Finish: Rust resistant black oxide
- Spring Material: S80C
- Blade Material: SK5
- Handle Material: PVC dip process
