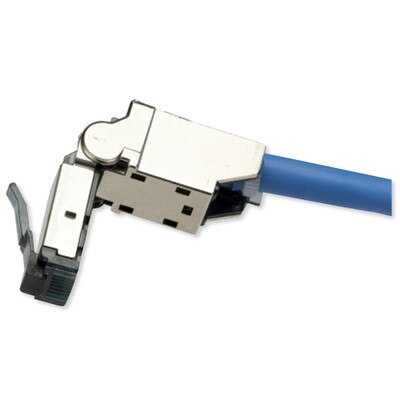

Platinum Tools Cat6A 10Gig Shielded Flex Connector (Single)

SKU: PL106230

Order now and we'll ship same business day (if ordered before 3 pm PST).

$13.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

No Strain Relief Needed – Just Flex

When you need a Cat6A or Cat7 cable to bend at the connector while plugged in, terminate it using the Platinum Tools Cat6A 10Gig Shielded Flex Connector (Single). The connector has a special "flex" joint that allows the cable to hang down or angle up vertically when plugged into a jack. It works with Cat6A/Cat7 cables up to 9mm with 26-22 AWG conductors (solid and stranded). Minimal tools are required for preparation — only flush cutters and a cable jacket stripping tool.

This model is shielded to help prevent signal degradation in longer/shielded cable runs. A non-shielded model is also available, sold separately (Platinum Tools part number 106220).

  • Works with Cat6A/Cat7 cables with solid and stranded conductors
  • "Flex" joint lets cable hang down or angle up vertically
  • Bends downward up to 90 degrees and upward up to 45 degrees
  • Prevents bending and eliminates the need for protection by strain reliefs
  • Tool-less termination design and machine-precision-set contact height

Platinum Tools Makes Connections Easy!

Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of our products absolutely must satisfy three critical benchmark criteria – Utility of function, Quality of function, and Economic value.

Specifications

  • Manufacturer Part #: 106230
  • Accommodates Cat6A and Cat7 cables up to 9.0mm with 26-22 AWG conductors
  • Works with both solid and stranded conductors
  • Frequency rated up to 1GHz
  • 10-Gigabit certified
  • PoE+ rated
