PCS SimpleWorx Split Duplex Wall Receptacle

SKU: PCRAM15x

Please Select Option To View Availability

$75.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Enable Remote Control for Plug-In Devices

Instantly add remote control to a plug-in device by plugging it into the PCS SimpleWorx Receptacle Module. This single-gang receptacle can replace a traditional receptacle using the existing wiring. The top outlet responds to commands from a SimpleWorx (SPC) transmitter (sold separately), while the bottom pass-through outlet stays powered continuously like a standard power outlet. It's great for controlling non-dimming lights, fans, radios, and other small household appliances.

  • Top outlet responds to SimpleWorx commands
  • Bottom outlet stays powered independently
  • Supports 120V loads up to 15A
  • Links with up to 8 SimpleWorx (SPC) transmitters
  • Meets the expanded NEC Tamper Resistant requirement

Tamper-Resistant to Protect Children

Designed with safety in mind, the module is constructed from high-impact resistant thermoplastic and is tamper-resistant to protect children, automatically shuttering its receptacles when a plug is removed. This meets the National Electrical Code standards required for residential installations.

NOTE: Wallplate not included. Requires a compatible SimpleWorx transmitter.

About SimpleWorx

SimpleWorx is a revolutionary digital point to points control system that cost-effectively provides basic on/off lighting control. SimpleWorx is powered by SPC (Simple Powerline Communication), a rock solid proven technology that offers efficient solutions for remotely turning lights on and off. SPC provides super reliable one-way control of lights and appliances using existing 120V wiring, and offers significant benefits above older powerline technologies or traditional Wired and RF solutions.

Specifications

  • Manufacturer Part #: RAM-15
    • RAM-15-A (Almond)

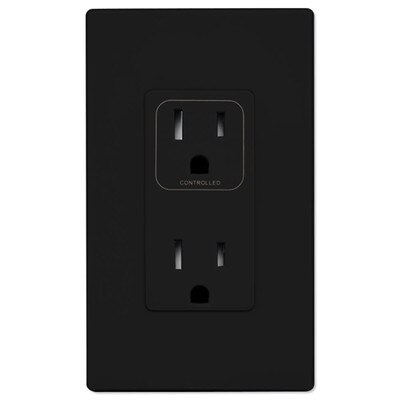

    • RAM-15-B (Black)
    • RAM-15-BR (Brown)

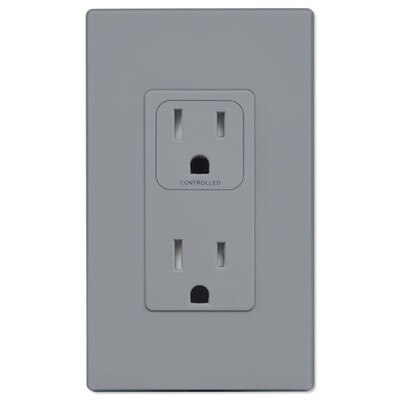

    • RAM-15-G (Gray)

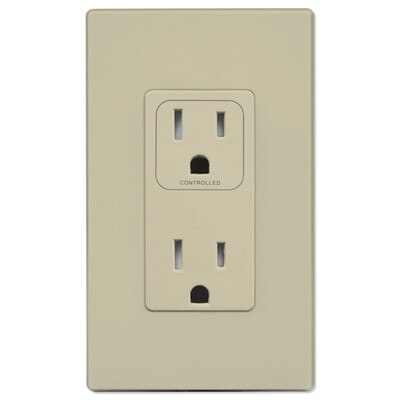

    • RAM-15-I (Ivory)

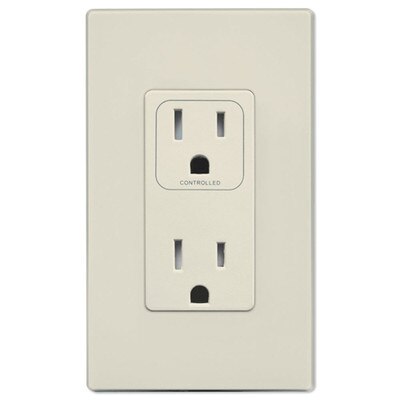

    • RAM-15-LA (Light Almond)

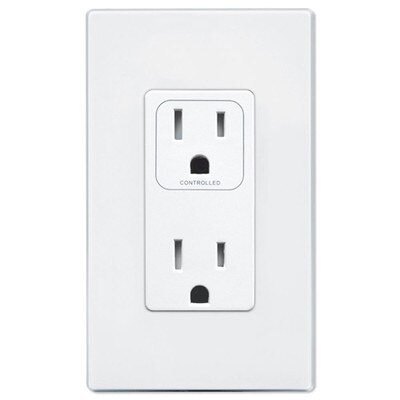

    • RAM-15-W (White)

Electrical

  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Max. Controlling Load: 15-Amp or 1/2 hp maximum loading
  • Transmission Channels: None
  • Connections: Colored Screws
    • Brass Screw (Lower Right) – Hot/Line
    • Brass Screw (Upper Right) – Load
    • Silver Screw (Upper/Middle Left) – Neutral
    • Green Screw (Lower Left) – Ground
  • Standby Power: <0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40° to 140° F (-40° to 60° C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Certifications: Pending; ETL tested to UL508; UL-508-2010 CSA C22.2 #14-2010

Operation

  • Status LED Indicator: Red
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Setup Mode: Hold the setup button for 8 seconds. Located in upper ground hole

Mechanical

  • Colors: White, Light Almond, Ivory, Black, Brown, Grey
  • Mounting: Single Gang or multi-ganged junction box
  • Dimensions: 3.31(H) x 1.20(W) x 1.90(D) inches
  • Weight: 3.4 ounces
  • Warranty: 5 Years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
