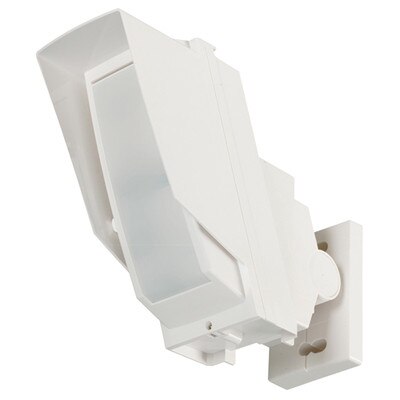

Optex iSeries Wireless High Mount Outdoor PIR Motion Detector, with Inovonics, 80'

Outdoor Motion Detector With Pyro-Elements

Designed to reduce the change of both false alarms and missed alarms, the Optex iSeries Wireless High Mount Outdoor PIR Motion Detector (with Inovonics, 80 Ft.) offers enhanced detection accuracy for outdoor applications. It's perfect for harsh environments where rain, fog, etc. threaten to disrupt standard motion detection devices. This model detects motion up to 80 feet away and provides 20 individual detection zones for customization.

• Ideal for high-end applications with severe environmental changes
• 80-foot coverage with 20 detection zones
• Both upper and lower detection areas must be activated
• Vegetation sway analysis logic prevents grass from triggering alarms
• Inovonics EchoStream wireless transmitter and batteries installed

Pyro-element technology provides multiple pattern detection areas with 20 high-density detection zones. The detector also features a discrimination function for spot temperature changes of moving objects, further enhancing alarm accuracy.

Slope-Friendly Mounting

Not all outdoor ground is flat like most indoor environments. Steep slopes can negatively affect a motion sensor's catch performance. The Wireless High Mount Outdoor PIR Motion Detector comes with an adjustable bracket to help you maintain optimal catch performance in spite of sloped ground.

Pyro-Elements Detection Technology

Optex developed pyro-elements to create unique area configurations with 94 high-density detection zones. Upper and lower detection areas must be activated in order to trigger an alarm, preventing false alarms caused by pets or small animals.

Dual Signal Processing Circuit

Advanced temperature compensation logic automatically increases the detector's sensitivity, especially where the background temperature ranges from approximately 59 to 94 degrees F (25 to 40 degrees C), close to that of the human body. Additionally, summer night compensation logic is effective for severe environmental conditions such as summer evenings and nights. The detector also measures luminance levels as the environment changes and allows sensitivity to automatically sharpen as conditions demand.

Vegetation Sway Analysis

The motion detector monitors wave changes and automatically cancels any signal caused by swaying grass or other foliage by determining the increase of distinctive wave changes.

Contents

• Motion Detector
• Mounting Bracket
• Mounting Screws
• Alarm Cable
• (2) Loop-and-Hook Fasteners
• (2) Battery Leads
• Dummy Battery

Optex – The Quality Products People Expect

Optex, Inc. markets products manufactured by Optex Company Limited. The company specializes in passive and active infrared technology, control systems, and CCTV products. Since its founding in 1979, Optex has established a worldwide reputation for quality, innovation, and technical excellence. Its products always represent an investment in performance and long-term satisfaction.

• Manufacturer Part #: HX-80NRAMi
• Detection Method: Passive infrared
• PIR Coverage: 80 x 6.6 feet (24 x 2 m) narrow / 20 zones
• PIR Distance Limit: 22 feet, 33 feet, 42 feet, 59 feet (6.5 m, 10.0 m, 13.0 m, 18.0 m)
• Detectable Speed: 1 foot/second to 4.9 feet/second (0.3 m/s to 1.5 m/s)
• Sensitivity: 3.6° F (2.0° C) at 0.6 m/s
• Power Input: 3 – 7.2 V DC Lithium Battery (CR123A x 3, CR2 x 3, 1/2AA x 3, 1/2AA x 6)
• Operating Voltage: 2.5 – 9 V DC
• Current Draw: 30µA (standby) / 4 mA (max.) at 3VDC
• Alarm Period: 2.0 ±1 second
• Warm-Up Period: Approx. 90 seconds (LED blinks)
• Alarm Output: Form C -Solid State Switch- 10 V DC 0.01 A max.
• Trouble Output: N.C./N.O. Selectable -Solid State Switch- 10 V DC 0.01 A max.
• Tamper Output: Form C. 28 V DC, 0.1 A max. changes when cover removed.
• LED Indicators:
• Disable: During normal operation.
• Enable: During WALK TEST or LED SW on.
• Red: Warm-up, Alarm, Trouble, Low battery
• RF Interference: No alarm 10 V/m
• Operating Temperature: -4 to 140° F (-20 to 60° C)
• Operating Humidity: 95 percent max.
• Weatherproof Rating: IP55
• Mounting: Wall
• Mounting Height: 2.5 to 3.0 m (8'2" to 9'10")
• Bracket Adjust Angle: Vertical: ±20° ; Horizontal: ±95°
• Weight: 27.5 ounces (780g)

»Optex HX-80N iSeries Wireless High Mount Outdoor PIR Motion Detector Literature (.pdf)
»Optex HX-80NRAM iSeries Wireless High Mount Outdoor PIR Motion Detector Installation Instructions (.pdf)
»Optex HX-80NRAMi iSeries Wireless High Mount Outdoor PIR Motion Detector Wiring Guide (.pdf)
