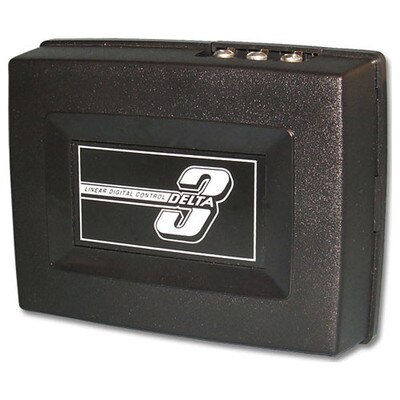

Linear Delta-3 Receiver, 24V

For Use With Automatic Garage / Gate Operators

The Delta-3 Receiver is a wireless radio control designed for use with automatic garage/gate operators and access control systems. The receiver can be activated by any of the Delta-3 format transmitters.

Available Channels: 1-Channel, 2-Channel, 4-Channel

Radio Controls For Every Requirement From Linear

From garage door openers to gate operators, from loading dock doors to access control systems, from everyday entry to high security, Linear makes radio controls to cover the industry’s diverse range of applications. Single and multi-channel transmitters and receivers can be mixed and matched within product families to address just about any user need. Linear’s popular Delta 3 line offers 256 codes and a 310 MHz frequency, which is ideal for most sites. The MegaCode line offers a 318 MHz frequency and adds the security of over 1,000,000 codes, each sequentially preset by the factory to all but eliminate any possibility of duplication.

These two radio control lines are further supplemented by a series of high performance controllers for configuring access control systems of nearly any size and entry method. And by Linear’s Multi-Code radio controls, which offer 1,024 codes and a 300 MHz frequency. If it’s radio controls you need, you've come to the right source.

• Activates one, two, or four devices
• Wire lead antenna
• 12 and 24 Volt models
• Mounting bracket supplied

Specifications

• Power: 24 Vac/Vdc
• Frequency: 310 MHz
• Dimensions: 5.5 x 1.25 x 4 inches
