Leviton QuickPort 6-Port Decora Wallplate Insert
LV41646x
Price: $4.85
|
|
|
|
|
 Product Description
|
LEVITON QUICKPORT 6 PORT INSERT
USE WHERE A DECORA LOOK AND FLUSH MOUNTING ARE IMPORTANT
Field-configurable Decora® style housing that accepts all QuickPort® snap-in modules. Use to support voice, data, audio and video applications in NEMA openings where a Decora look is desired.
AVAILABLE IN:

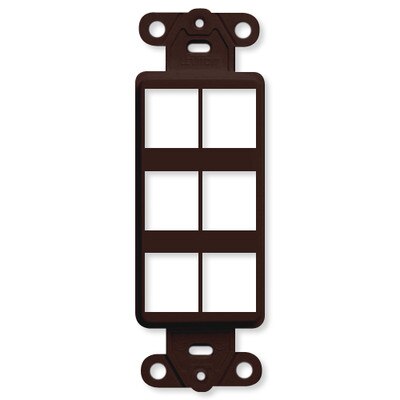

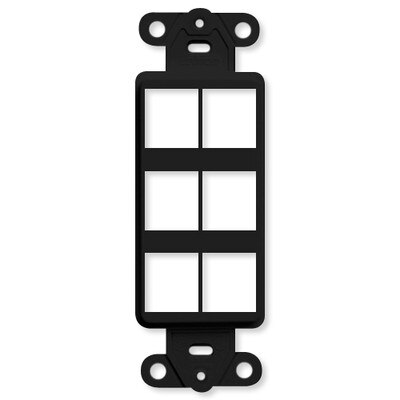

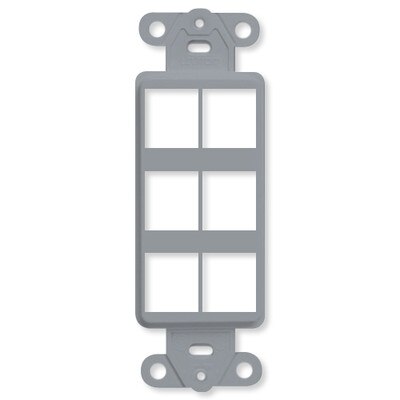

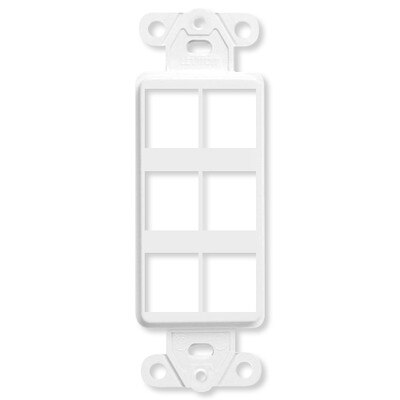

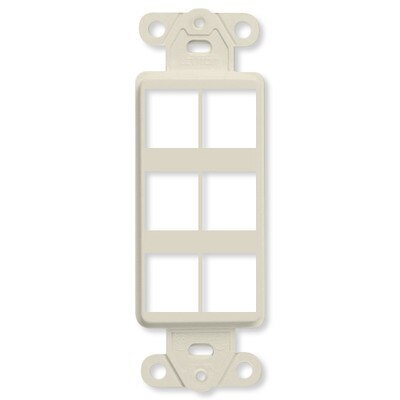

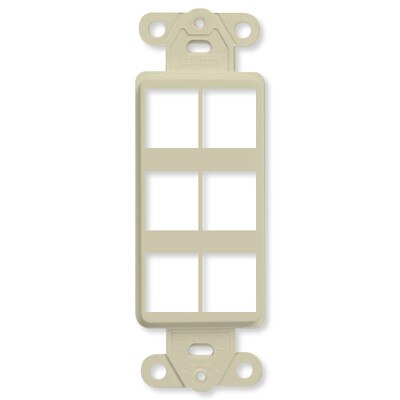

| Leviton Quickport 6 Port Insert, Black | LV41646E | | Leviton Quickport 6 Port Insert, Brown | LV41646B | | Leviton Quickport 6 Port Insert, Gray | LV41646GY | | Leviton Quickport 6 Port Insert, Ivory | LV41646I | | Leviton Quickport 6 Port Insert, Light Almond | LV41646T | | Leviton Quickport 6 Port Insert, White | LV41646W |
DESIGN CONSIDERATIONS
- Use where a Decora look and flush-mounting are important.
- Fits locations where a Decora-style opening exists.
- Available in single or multiple gangs.
- If ganged with electrical devices, use the 47610 series of mounting brackets or a barrier box.
- Put blanks (41084-BXB) in unused ports to allow for future expansion.
- To ID ports, use different colored jacks for each application.
UNIQUE FEATURES
- Mounts completely flush
- True Decora design matches Leviton Decora rocker switches and electrical products
- Fits within minimum NEMA openings
- Compatible with all individual QuickPort modules
- High port density
PHYSICAL SPECIFICATIONS
- Dimensions: 4.145"H x 1.405"W x .45"D
- Capacity: 2 to 6 snap-in modules
- Materials: High-impact, fire-retardant plastic rated UL 94V-0
|
|
| |
|
