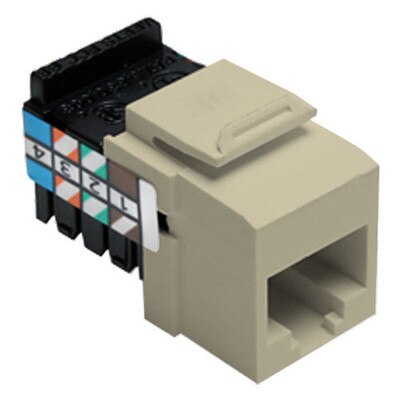

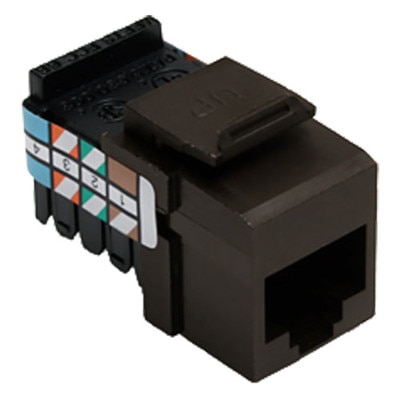

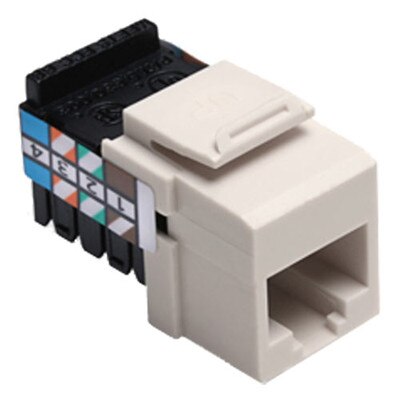

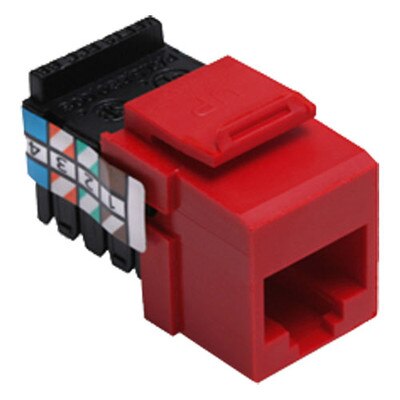

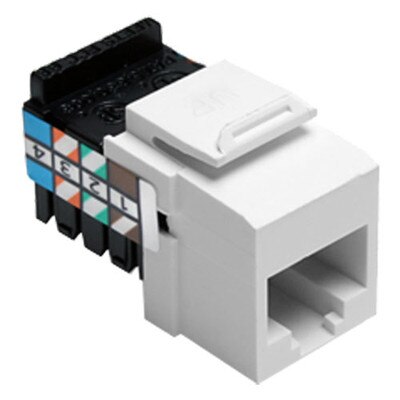

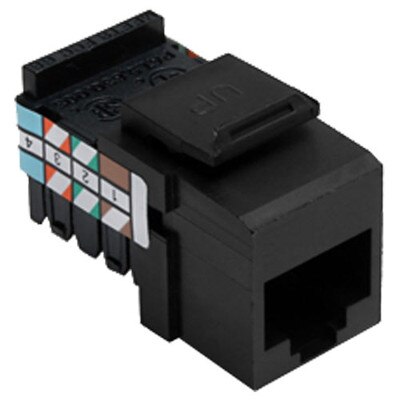

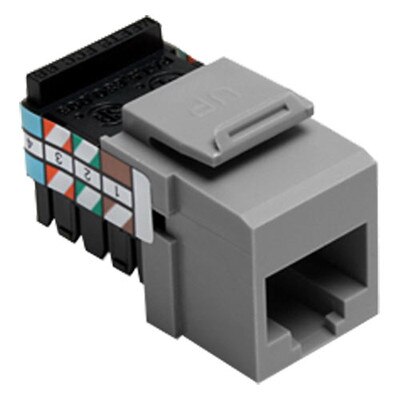

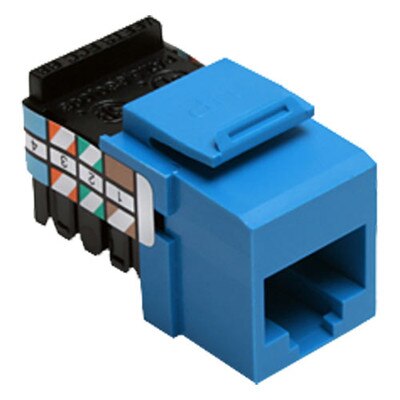

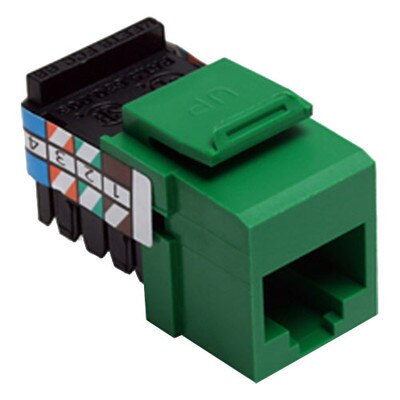

Leviton QuickPort Voice-Grade RJ45 Snap-In Connector
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Compatible With All QuickPort Snap-In Modules
The Leviton QuickPort RJ-45 Voice Grade Snap-In Connector, 8-Conductor is designed for voice grade structured wiring systems in small areas. This modular connector's narrow design supports high port-density applications and features a unique cutting ledge that allows you to terminate and trim in just one step. The connector also offers dual-color-coded labels with T568A and T568B wiring patterns. These connectors easily snap into QuickPort wallplates and housings.
- Individual-port configurability allows specification flexibility
- Provides fast, accurate 110 termination
- Robust one-piece lead-frame design
- Voice Grade and USOC wire configuration labels
Leviton's QuickPort Family
The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.
Specifications
- Dimensions: 0.885(H) x 0.636(W) x 1.179(D) inches
- Materials: Connector body is high-impact, fire-retardant plastic rated UL 94V-0. Spring wire contacts are highest quality phosphor bronze, plated with 50 microinches of gold over 100 microinches of nickel for lowest contact resistance, maximum life. Connector 110 IDC contacts are solder-plated phosphor bronze.
