Leviton QuickPort Cat5e 8-Conductor Connector
LV5G108R
Leviton's GigaMax 5e Connector is designed to be used with any QuickPort housing in surface mount...
Price: $4.95
|
|
 Product Description
|
LEVITON QUICKPORT CAT5E SNAP-IN CONNECTOR
GET PLUGGED IN WITH STYLE
Leviton's GigaMax 5e Connector is designed to be used with any QuickPort housing in surface mount, flush mount or modular furniture outlets and field configurable panels. The connectors include Leviton's patented "Retention Force Technology" which promotes consistent performance over the life of the system. Includes unique pair separation towers allowing for quicker and easier terminations. The connector is configured in a 180 degree configuration such that the punch field is in the back, allowing for rear termination. GigaMax 5e system components meet or exceed the requirements for channel-level performance for TIA/EIA Category 5e applications.

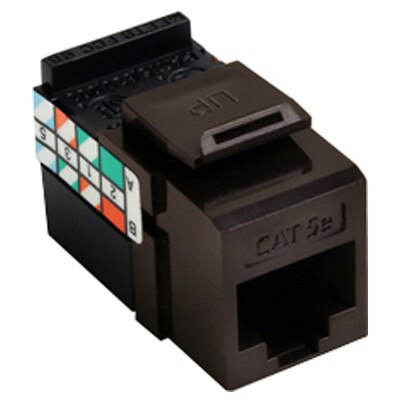

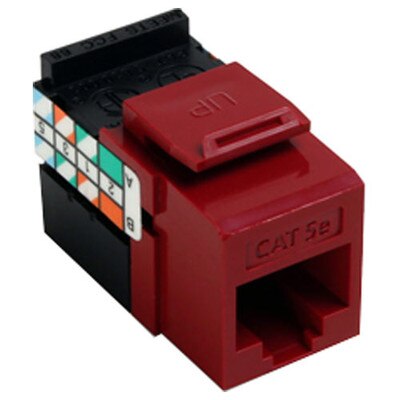

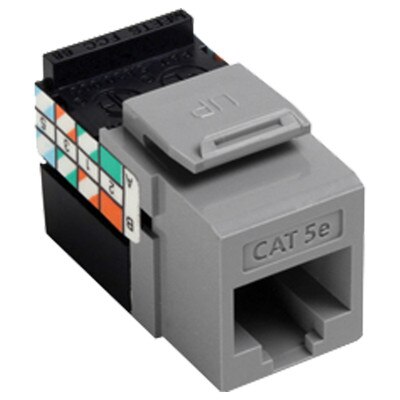

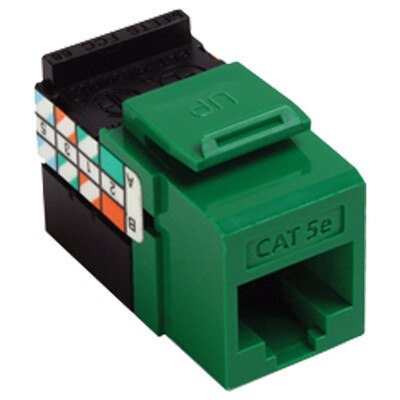

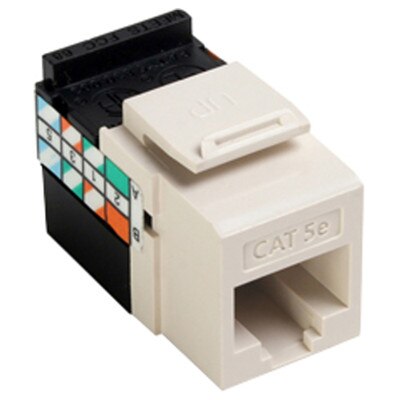

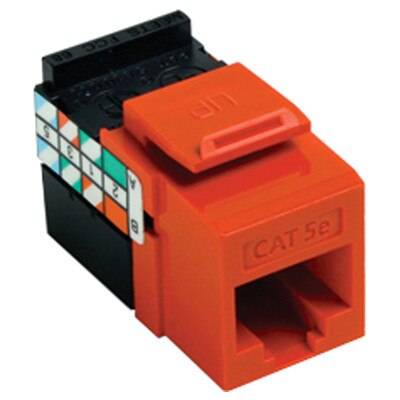

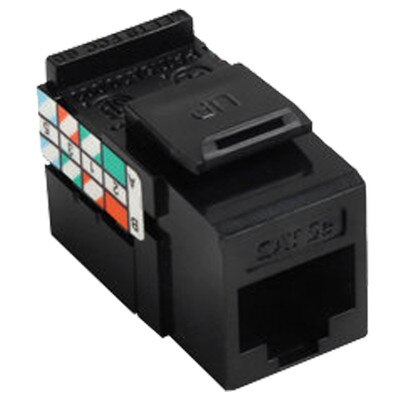

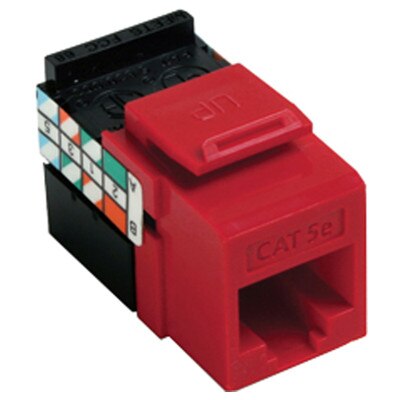

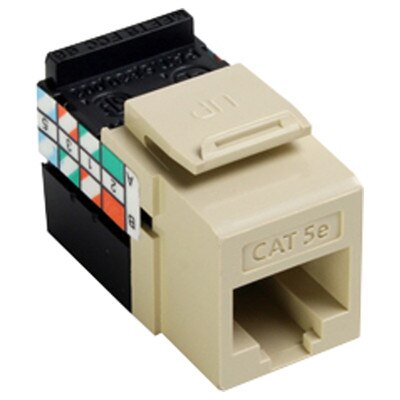

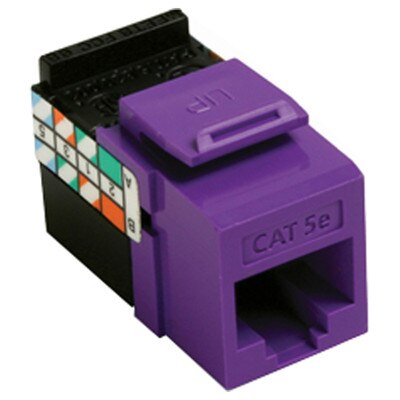

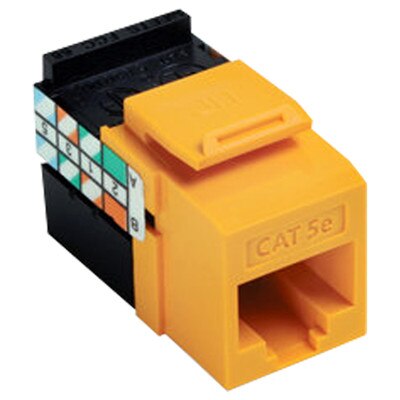

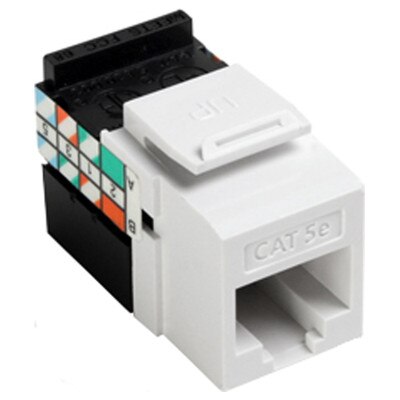

Choose Black, Blue, Red, Green, Gray, Almond, Yellow, or White
MULTIMEDIA STRUCTURED CABLING SYSTEMS
The Leviton Voice & Data Division offers a vast array of multimedia solutions for commercial and residential structured cabling. Leviton provides a broad line of state-of-the-art voice/data connectivity products, supporting industry standards and open-architecture requirements. All Leviton products have built-in installer and user-friendly design features to reduce installation time and costs for adds, moves or changes.
|
Specifications
|
|
Leviton GigaMax 5e Connector Spec Sheet (.pdf)
- Module Style: Connector
- Module Type: Category 5e
- Position / Conductor: 8P8C
- Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
- Connector Feature: Channel-Rated
- Termination Type: 110 Punchdown
- Contact Surface Material: 50 micro-inches thick Gold-Plated
- Contact Sub-Surface Material: 100 micro-inches thick Nickel-Plated
- Contact Base Material: Phosphor Bronze
- Body Color: Blue, Red, Green, Gray, Black, White, Yellow
- Standards and Certifications: TIA/EIA cULus Listed
|
|
|
|
|
|
|
|
