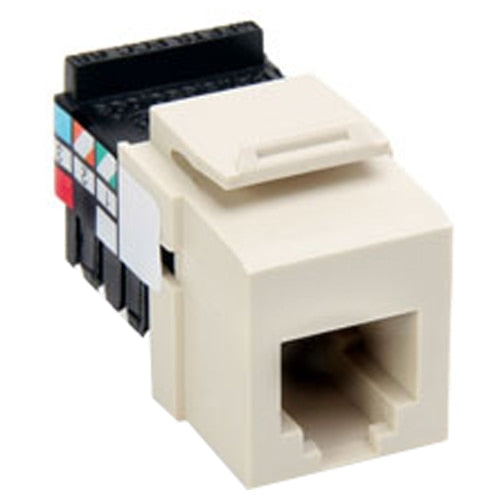

LEVITON QUICKPORT 6 WIRE CAT 5 MODULAR JACK

QUICKPORT USOC VOICE GRADE SNAP-IN CONNECTOR

The Leviton Voice Grade 6 Wire Cat 5 Modular Jack is designed to be used with any QuickPort housing in surface mount, flush mount or modular furniture outlets and all patch panels and patch blocks. The Snap-In Connector's components meet or exceed the requirements for TIA/EIA Voice Grade applications. Dual wiring code label allows connector to be wired to either Voice Grade or USOC wiring configurations. Exclusive cutting ledge combines termination and trim in one labor-saving step.

QUICKPORT® SNAP-IN ADAPTERS & CONNECTORS FOR AUDIO / VIDEO

Mix & match QuickPort Snap-In Adapters and Connectors for Audio/Video with other QuickPort connectors to create a customized multimedia center in any single- or dual gang wallplate. These inserts require no soldering, and connections can be made with standard industry tools.

Leviton QuickPort 6 Wire Voice Grade Jack Install Guide (.pdf)

Specifications:

• Module Style: Connector

• Module Type: USOC Voice Grade

• Position / Conductor: 6P6C

• Cable Type: 6-Conductor UTP Copper USOC

• Termination Type: 110 Punchdown

• Contact Surface Material: 50 microinches thick Gold-Plated

• Contact Sub-Surface Material: 100 microinches thick Nickel-Plated

• Contact Base Material: Phosphor Bronze

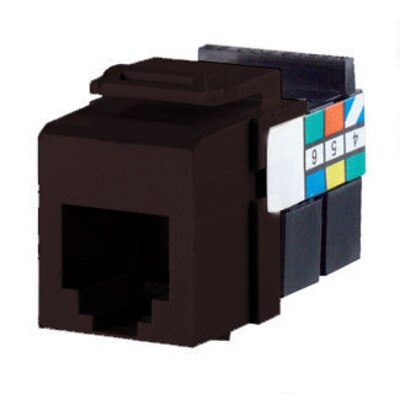

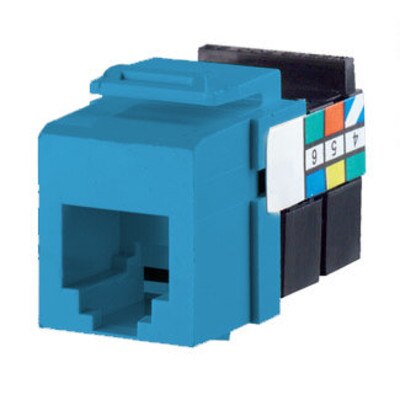

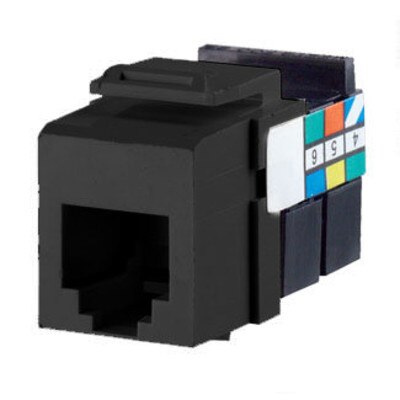

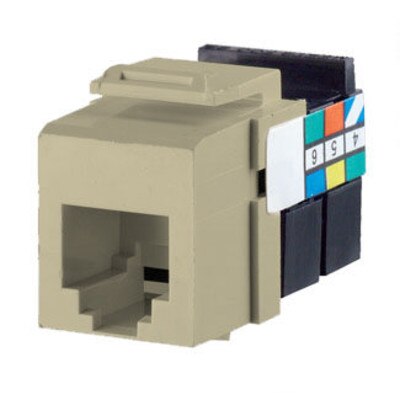

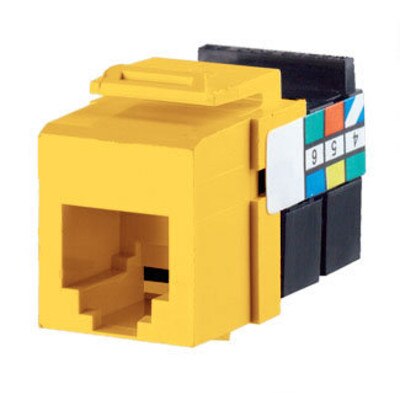

• Body Color: Almond, Black, Brown, Blue, Crimson, Gray, Ivory, White or Yellow

• Standards and Certifications: TIA/EIA UL/CSA
