Price: $149.95 – $289.95

In x Out     - Select - 1 x 8 1 x 16 1 x 1
Quantity

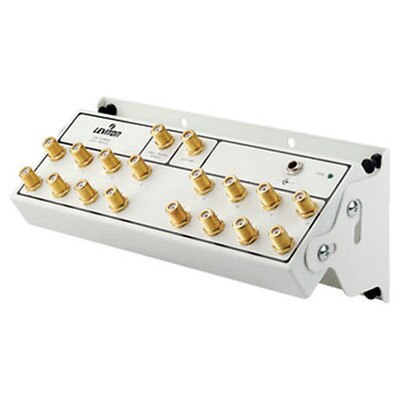

LEVITON PREMIUM CATV MODULE WITH PASSIVE CABLE MODEM BYPASS, 1x16

DISTRIBUTE A VARIETY OF INCOMING RF SIGNALS TO MANY LOCATIONS

The Leviton 1x16 CATV Premium module provides distribution of incoming video service (Cable TV, Antenna, or other modulated sources) to multiple outputs. The module incorporates state-of-the-art bi-directional signaling to support advanced interactive communications via a cable modem or cable box as well as standard CATV, antenna and modulated input from such sources as VCRs, DVDs and security camera/CCTVs. The Premium CATV module optimizes the performance of digital cable signals to handle advanced technologies offered by cable operators, including delivery of HDTV. The 1x16 module features a passive cable modem bypass port for VOIP functionality over cable during power outages.

Available In 1x1, 1x8, and 1x16.

STRUCTURED MEDIA™ COMPONENTS—LEVITON INTEGRATED NETWORKS™

Leviton Integrated Networks and Controls combines all the products and systems necessary to fully prepare today’s homes for the networking, communications, entertainment and control technologies of tomorrow. From Structured Media™ systems that manage voice, data and video services to complete home entertainment systems, from room and scene lighting control to advanced energy-saving devices, Leviton Integrated Networks and Controls is the upgrade path to the future for any residential application.

Premium CATV Module Spec Sheet (.pdf)
Premium CATV Module Instructions (.pdf)

Features:

• Digital CATV and HDTV compatible
• High quality, professional-grade
• Distribute CATV, HDTV, antenna, VCR/DVD, Camera/CCTV signals on coaxial cable throughout a home or office
• Provide a bi-directional signal path to support cable modem or cable box communications
• Easily install into Leviton’s Structured Media enclosures in a vertical or horizontal direction
• Modules tilt for greater ease of installation.
• Robust machine-threaded, gold-plated brass ports meet SCTE requirements
• F-ports provide up to 15 psi weather sealing
• The 360-degree seizing insert retains center conductor up to a pullout tension of 200 grams on .032" diameter coax center conductors.
• Power adapter provides unique small-sized form factor
• Termination caps included (except 1x1 module)
• 1x16 module has a passive cable modem bypass port for VOIP functionality over cable during power outages
• Forward path incorporates a high-quality unity gain amplifier design
• Unamplified return path
• Durable aluminum die-cast housing with white powder coating

Specifications

• Dimensions:
  - 1x1 Premium Module (3.50" H x 6.50" W x 3.58" D)

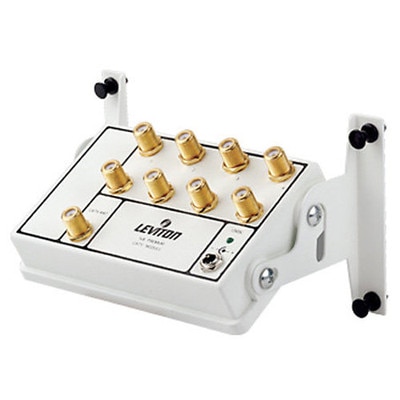

  - 1x8 Premium Module (3.50" H x 6.50" W x 3.58" D)
  - 1x16 Premium Module (3.57" H x 9.16" W x 3.42" D)
• Impedance: 75 Ohm
• Connector Type: F-Type Gold Plated
• Power input: 12VDC 1A, adapter supplied
• Frequency:
  - 52-1000 MHz Forward path
  - 0-45 MHz Reverse Path
