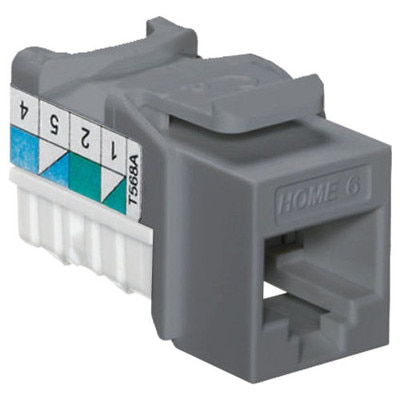

LEVITON HOME 6 CONNECTOR

PERFORMANCE SUPPORTS HIGH MEGABIT AND SHARED-SHEATH APPLICATIONS

The Leviton HOME 6™ Connector provides network connections for CAT 6 UTP structured cabling systems in residential applications. The connectors support high megabit applications such as Gigabit Ethernet and 622 Mbps ATM. For use in residential applications.

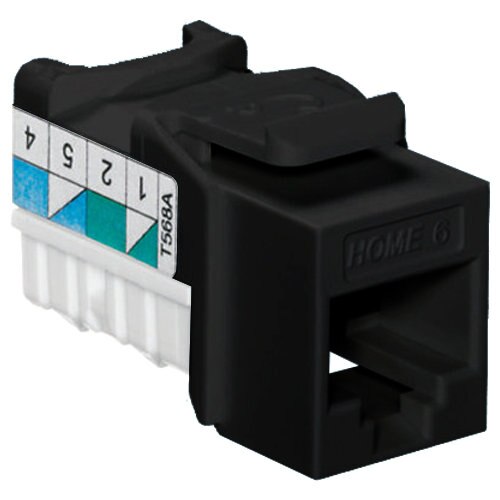

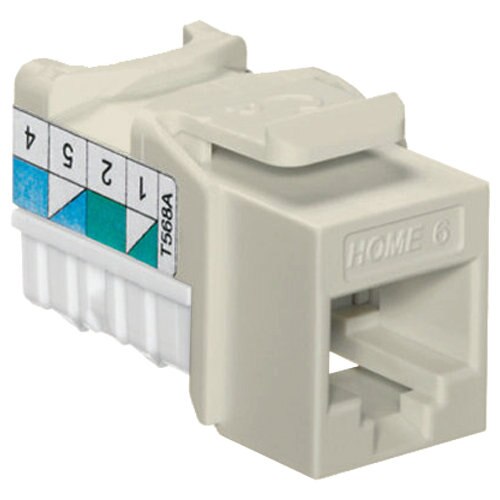

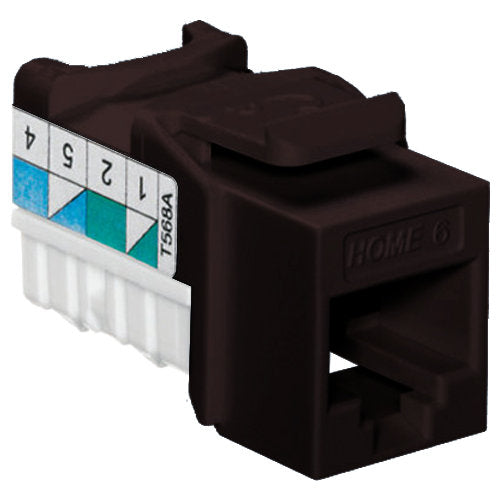

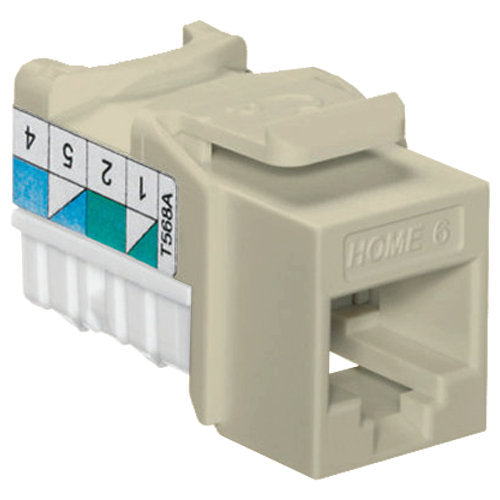

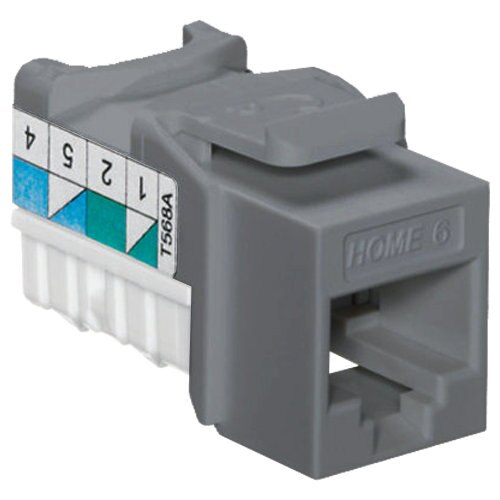

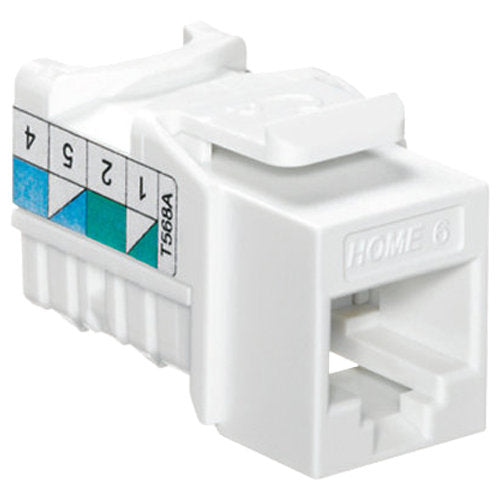

Available In Black, Blue, Brown, Gray, Ivory, Light Almond, and White.

LEVITON INTEGRATED NETWORKS AND CONTROLS

Leviton Integrated Networks and Controls combines all the products and systems necessary to fully prepare today’s homes for the networking, communications, entertainment and control technologies of tomorrow. From Structured Media™ systems that manage voice, data and video services to complete home entertainment systems, from room and scene lighting control to advanced energy-saving devices, Leviton Integrated Networks and Controls is the upgrade path to the future for any residential application.

Leviton HOME 6 Connector Spec Sheet (.pdf)
Leviton HOME 6 Connector Instructions (.pdf)

Features:

• Available in seven colors
• T568A wiring
• Individual port configurabilty allows specification flexibility
• Robust one-piece lead-frame design
• Narrow connector allows high-port density in a small area
• Performance supports high megabit and shared-sheath applications

Design Considerations

• Use in any QuickPort housing to support CAT 6 UTP connectivity in surface mount, flush-mount, or modular furniture outlets, or patch panels and patch blocks
• Can be used in conjunction with other QuickPort snap-in modules for voice/data and video applications over UTP, coax and fiber
• To ID ports, use different colored modules for each application.

Physical Specifications

• Dimensions: .58" H x .63" W x 1.18" D
• Materials: Connector body is high-impact fire-retardant plastic, rated UL 94V-0. Spring wire contacts are high-quality phosphor bronze, plated with 50 micro-inches of gold over 100 micro-inches of nickel for lowest contact resistance, maximum life. Connector 110-style IDC contacts are solder-plated phosphor bronze.
