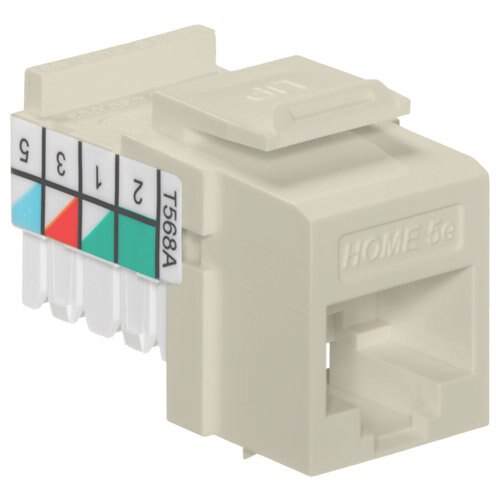

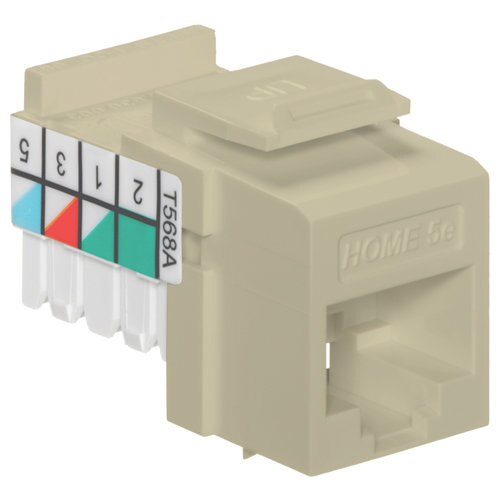

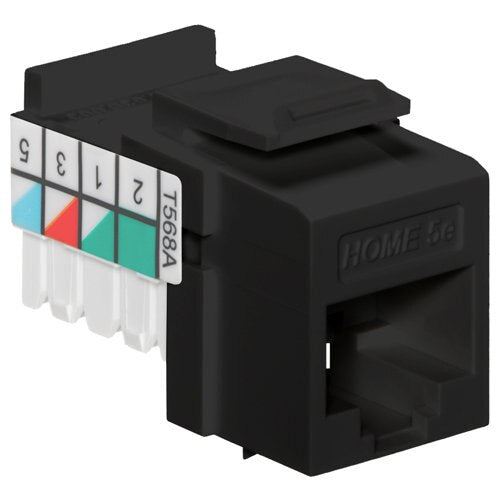

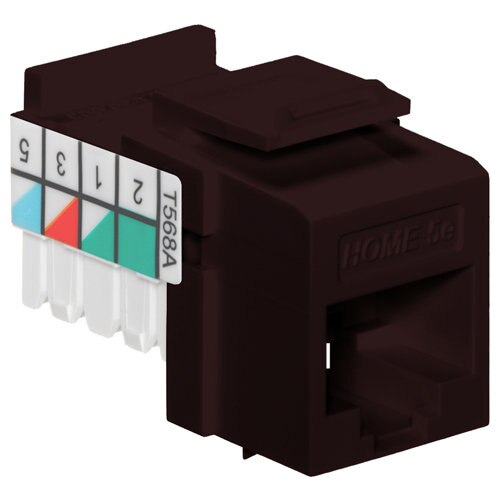

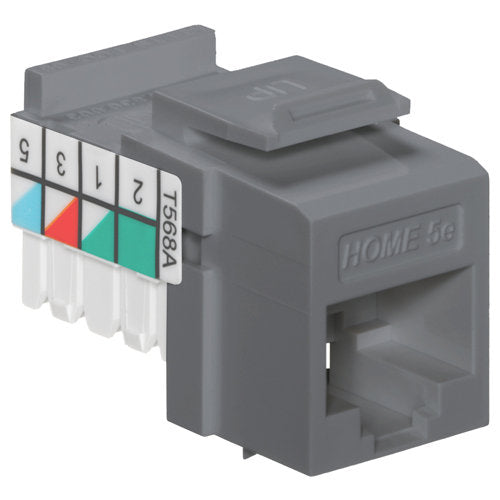

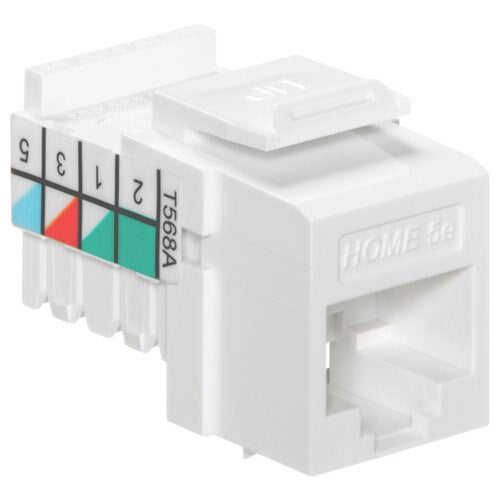

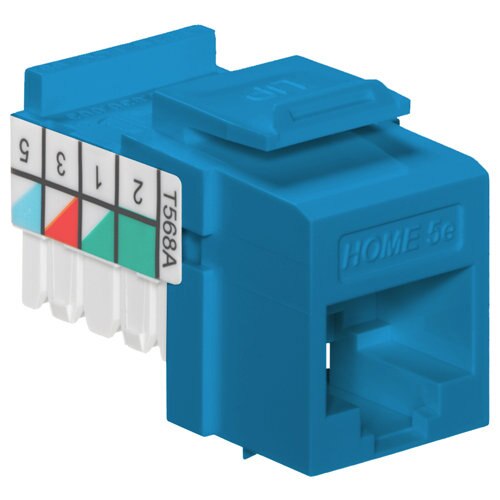

Leviton QuickPort Home 5e Snap-In Connector
LV5EHOMRx5
Price: $3.55
|
|
|
|
|
 Product Description
|
LEVITON HOME 5e™ CONNECTOR PERFORMANCE SUPPORTS HIGH MEGABIT AND SHARED-SHEATH APPLICATIONS The Leviton HOME 5eTM Connector provides network connections for CAT 5e UTP structured cabling systems in residential applications. The connectors support high megabit applications such as Gigabit Ethernet and 622 Mbps ATM. For use in residential applications. Available In Black, Blue, Brown, Gray, Ivory, Light Almond, and White. LEVITON INTEGRATED NETWORKS AND CONTROLS Leviton Integrated Networks and Controls combines all the products and systems necessary to fully prepare today’s homes for the networking, communications, entertainment and control technologies of tomorrow. From Structured Media™ systems that manage voice, data and video services to complete home entertainment systems, from room and scene lighting control to advanced energy-saving devices, Leviton Integrated Networks and Controls is the upgrade path to the future for any residential application. |
|
Home 5e Connector Spec Sheet (.pdf)
Home 5e Connector Instructions (.pdf) Features: - Use in any QuickPort housing to support CAT 5e UTP connectivity in surface mount, flush-mount, or modular furniture outlets, or patch panels and patch blocks
- Can be used in conjunction with other QuickPort snap-in modules for voice/data and video applications over UTP, coax and fiber
- To ID ports, use different colored modules for each application
- T568-A wiring
- Individual port configurabilty allows specification flexibility
- Robust one-piece lead-frame design
- Narrow connector allows high-port density in a small area
- Performance supports high megabit and shared-sheath applications
- Available in seven colors
Standards Compliance - Dimensions: .58" H x .63" W x 1.18" D
- Materials: Connector body is high-impact fire-retardant plastic, rated UL 94V-0. Spring wire contacts are high-quality phosphor bronze, plated with 50 micro-inches of gold over 100 micro-inches of nickel for lowest contact resistance, maximum life. Connector 110-style IDC contacts are solder-plated phosphor bronze.
Standards Compliance - Meets all applicable standards and listings:
- TIA-568-C
- FCC Part 68
- cULus Listed
|
|
