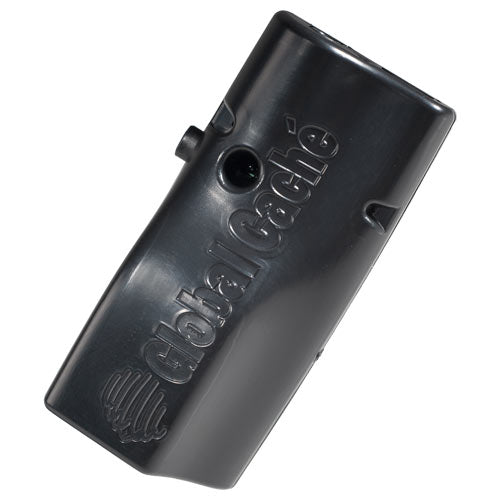

Global Caché iTach Flex IP with PoE

Enable IP Control for Any Electronic Device

The Global Caché iTach Flex IP with PoE simplifies a Flex IP installation by cutting out the need for a separate power supply. Power is delivered over the Ethernet cable, allowing flexible installs even where a power outlet isn't available. The iTach Flex IP adds IP control to nearly any electronic device, so you can control that device over the Internet using your smartphone, tablet, or PC. Automate events and control it from anywhere!

• Connects almost any electrical device to a wired Ethernet network via RJ45
• Access, monitor, automate, and control standalone equipment
• Web-based control protocol using HTTP

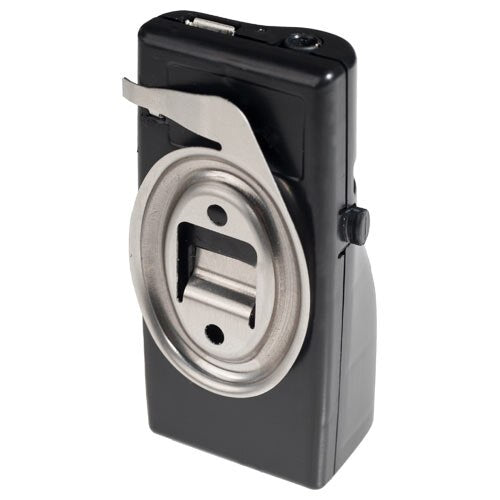

• Mounting dock for simple installation

The Global Cache iTach Flex WiFi system comprises two components: the included compact IP-enabling module (hardwired, with RJ45 port) and a connecting Flex Link cable (sold separately). Flex Link cables come in a variety of configurations (RS-232, IR, contact closure) to support almost any electrical device. The cable simply connects to your IP module via the 3.5mm jack, and connects to your device via the appropriate connector.

How It Works

Once the pieces are connected, the Global Cache iTach Flex WiFi offers remote control with control apps in the iTunes Store and Android Marketplace. The unit includes a 4MB flash drive that enables use of local memory, allowing you to store web pages and files in a standard FAT file system. These files are accessible from any location, on or outside the network, and allow for web page control of your devices.

Entertainment systems are the most common household devices to be controlled, and most of those devices respond to IR codes, the infrared commands sent by your typical remote control. Integrated tightly with the iTach Flex is a no-charge, cloud-based service that instantly provides the required IR codes for the equipment being controlled. The ease-of-use and versatility of the cloud-based system ensures compatibility and expandability of any system. The iTach Flex also offers built-in IR learning.

Note: To connect the iTach Flex to your electrical device, you will need to determine your device's required connector (RS-232, IR, contact closure) and purchase the corresponding Flex Link cable.

IMPORTANT NOTE: Global Caché products are not available to ship outside the U.S. Please contact Global Caché directly for international orders.

Simply Connect With Global Caché

The Global Caché family of connectivity products provides choices for the industry professional and the consumer – significantly reducing costs and providing a scalable platform for today and the future. Global Caché's belief in open systems and the evolution of the automation market is being played out today, since cost-effective PC-based and phone-based control applications are now becoming widely available. iTach devices, Network Adapters, and other Global Caché connectivity products have radically changed the automation dynamic. These products are engineered to integrate easily into any control environment, even high-end proprietary systems, providing a path to open systems and better competitive leverage.

Product Features

• Smart end-points enhance and connect standalone devices

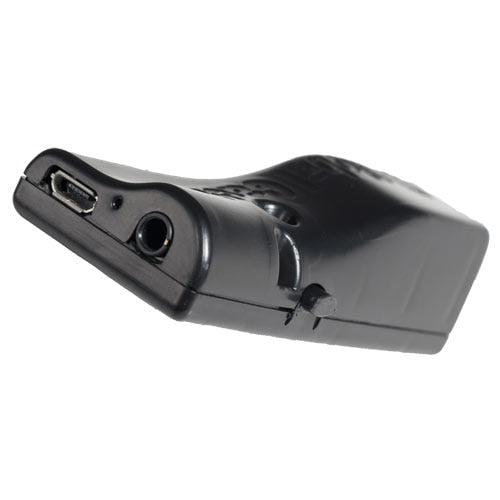

• Standard 3.5mm jack supports almost any protocol using Flex Link cable
• Built-in HTTP support for simple and instant network connectivity
• Downloadable iLearn software allows capture and playback of IR commands
• Downloadable iHelp software simplifies network discovery and setup
• 4MB flash memory – store web pages and files accessible via URL
• 4-conductor Global Port allows for versatility using Flex Link cables
• Built in IR learning and access commands to cloud-based IR database
• Made in the USA and RoHS compliant

Technical Details

• Power Input:
• 5V DC at 250mA (90 to 230V wall power adapter included)
• USB micro adapter cable draws power from USB port (included)

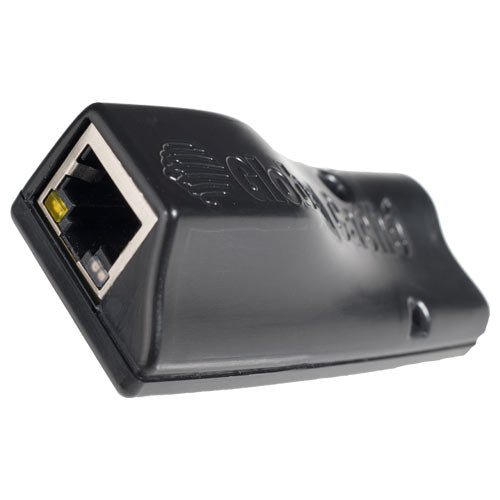

• Network Connection: Wired TCP/IP – RJ45 standard Ethernet connector. 100/10 Mbits Ethernet protocol.
• LED Indicators: Power and connectors to indicate activity and status
• Global Port: 4 Conductor connection (TRRS: tip, ring, ring, sleeve)
• Serial/RS232:
• Male DB9 with automatic configuration sensing
• 600 baud to 115.2 Kbaud data rates supported
• Odd, Even, and None parity settings
• Bi-directional with hardware RTS/CTS flow control
• Flex Link Cables: Supports IR Out, IR Blaster, IR Tri-Port and Serial
• IR Output: From 20 to 500 KHz. 3.5mm connector.
• Control APIs:
• TCP: ASCII textual commands compatible with iTach and GC-100 protocol. Comma delimited, carriage return terminated.
• HTTP: New web-based control using HTTP commands with JSON payload data.
• Dimensions: 2.58(L) x 1.22(W) x 0.82(H) inches
• Certifications: FCC (Part 15, Class B), C-tick, RoHs compliant
