  • Seco-Larm Enforcer Curtain Sensors, 6 Beams, 44"

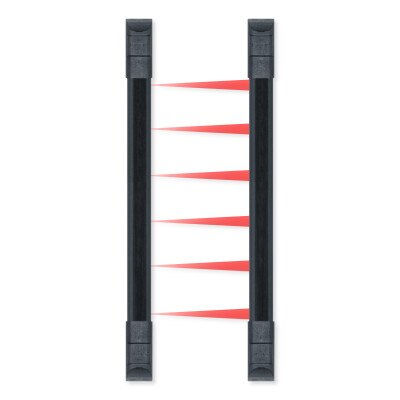

Seco-Larm Enforcer Curtain Sensors, 6 Beams, 44"

SKU: SEE96446B25

Please Select Option To View Availability

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$109.72

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

6 Beams, 44", Black Or White Casing

These infrared photobeam curtain/barrier sensors are perfect for installation in windows, doorways, skylights, fence tops, any place where space is limited.

Suitable for indoor and outdoor perimeter security, the trigger is programmable for simultaneous breaking of any single or 2 adjacent beams. The design features rugged aluminum construction, and an anti-tamper circuit for triggering an alarm if power is cut or the end cap is removed.

No synchronizing wires are required and the LED alignment indicator makes installation easy. L-brackets and mounting hardware are included.

Typical Applications

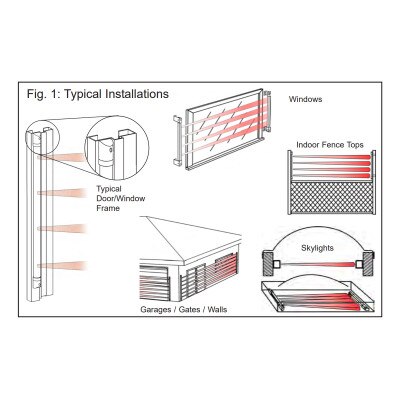

  • Install in windows, doorways, skylights, fence tops, any place where space is limited.
  • Triggers on breaking of any single or 2 adjacent beams (programmable).
  • Rugged aluminum construction.
  • Weatherproof IP65 construction.
  • Anti-tamper circuit triggers alarm if power is cut or end cap is removed.
  • No synchronizing wires required.
  • N.O./N.C. relay output, 1A @12~24VDC.
  • LED alignment indicator.
  • L-brackets and mounting hardware included.
  • Multi-Frequency: Reduces interference and eliminates crosstalk when multiple units are used in close proximity to one another.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #:
    • E-9644-6B25 : Black
    • E-9644-6W25 : White
  • Voltage: 12~24VDC
  • Standby Current: 94mA
  • Active Current: 79mA
  • Number of Beams: 6
  • Max. range: 25' (8m) outdoor, 50' (16m) indoor
  • Output: NO./NC. relay output, 1A @ 12~24VDC
  • Operating temperature: -49° ~131° F (-45° ~55° C)
  • Attenuation LED: (On): powered, aligned properly, (Flash): when beam is broken, (Off): no power
  • Size:
    • Length: 44-1/2" (113cm)
    • Width x Height: 15/16" x 7/8" (33.5 x 22.3mm)
  • Case: A1 alloy
  • Response time: 0.5 ~ 48.5ms.
  • Hardware: Mounting Bracket Included
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer Curtain Sensors for Indoor/Outdoor Access Control Installation Manual (.pdf)
