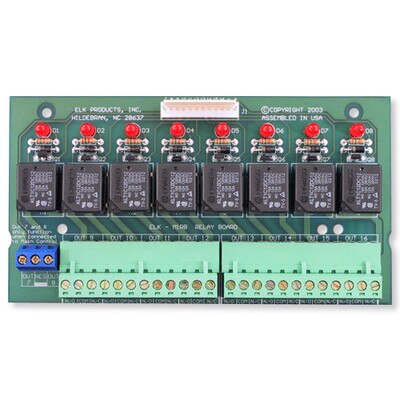

ELK M1 Relay Board, 8 Form C Relays
ELKM1RB
Plug-in (8 form "C" relays). May be plugged directly into an M1G, M1XOV, or M1XOVR to convert the low current voltage outputs into...
Price: $80.95
|
|
 Product Description
|
ELK M1 RELAY BOARD, 8 FORM C RELAYS
CONVERT LOW CURRENT VOLTAGE OUTPUTS TO RELAY OUPTUTS
Plug-in (8 form "C" relays). May be plugged directly into an M1G, M1XOV, or M1XOVR to convert the low current voltage outputs into SPDT relay outputs.
M1 CROSS PLATFORM CONTROL
ELK Products, Inc. designs and manufactures premium quality electronic equipment for the professional security and automation installer. ELK's M1 Cross Platform Control Family integrates rock solid security and full featured automation providing convenient user interfaces and remote control options. M1 can be integrated with other manufacturers systems for complete control of home or business.
|
Specifications
|
|
ELK M1 Relay Board, 8 Form C Relays Installation Guide (.pdf)
FEATURES:
8 Form "C" Relays, SPDTdry contact
Heavy duty contact rating Low current draw
Great for general purpose switching
Plug-in removable terminal blocks
LED status indicators on all 8 relays
Twelve (12) conductor plug-in wire harness
Mounts in enclosures using ELK mounting glides
SPECIFICATIONS:
Diode protection across relay coil
Contacts rated for 7 Amps @ 28 VDC, 10 Amps @125 VAC
Wire harness length: 24 inches
Operating voltage: 12 VDC nominal
Current draw: 0 mA idle, 250 mA max
Size: 6" W x 3" H x 1.25" D
|
|
|
|
|
|
|
|
