ELK M1 KP2 LOW PROFILE KEYPAD

CHECK OUT THIS NEW KEYPAD!

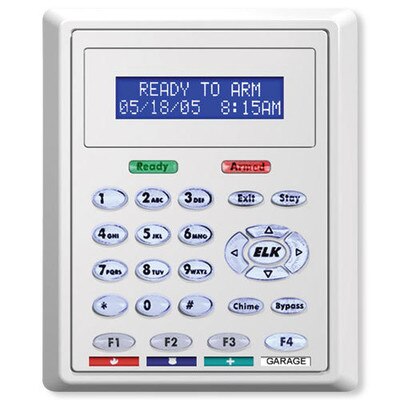

The ELKM1KP2 is a low profile, addressable LCD Keypad for the M1 family of Cross Platform Controls. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. It may also be recess flush mounted using with a separately purchased back box kit (ELKM1BBK2). The M1KP2 is compatible with "external" 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc.

The M1 Controller family offers unequaled value to Systems Integrators, Installers and End Users alike. Unlike panels that may be strong in automation but weak in security (or vice versa), the M1 boasts a rock solid security foundation with the most imaginative and powerful automation functionality available.

Integrators and Installers will value the flash memory firmware, RS-232 serial port, ethernet connectivity option, fast PC programming and ease of installation resulting in reduced work time. M1 offers the flexibility to integrate industry standard systems and components for easy upgrades and system expansion. End users will welcome the quality and futuristic capabilities of the versatile keypad and the built-in telephone remote. The 500+ word vocabulary pleasantly announces system status, configurable in any sequence to alleviate user intimidation.

M1 CROSS PLATFORM CONTROL

ELK Products, Inc. designs and manufactures premium quality electronic equipment for the professional security and automation installer. ELK's M1 Cross Platform Control Family integrates rock solid security and full featured automation providing convenient user interfaces and remote control options. M1 can be integrated with other manufacturers systems for complete control of home or business.

ELK M1 Low Profile Keypad Install Manual (.pdf)

• Blue/white Backlighted Hi-Contrast

• LCD Display

• Four (4) Programmable Function Keys

• Unique Menu Navigation/Direction Keys

• Operates from the M1/EZ8 'RS-485' Data Bus

• Built-in Piezo Sounder with adjustable pitch

• Accepts "External" 26 bit Wiegand Prox Reader (Optional)

• Input for 1 Supervised Zone

• One Programmable "Switched Positive" Voltage Output

• Exit, Stay, Chime, and Bypass Keys

• Surface mounts to a standard 1 or 2 gang electrical box

• Optional recess 'flush' mount kit available (ELK-M1BBK2)
