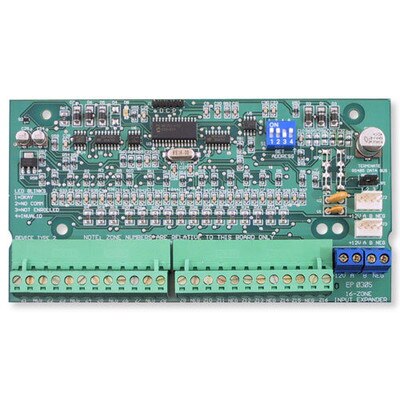

ELK M1 16 Zone Input Expander
ELKM1XIN
The ELK M1 zone expander adds 16 hardwired zones (EOL resistor supervised) to the ELK M1 controller. It operates on the 4-wire data bus and...
Price: $102.95
|
|
 Product Description
|
ELK M1 16 ZONE INPUT EXPANDER
EASILY ADD HARDWIRED ZONES TO THE ELK M1 CONTROLLER
The ELK M1 zone expander adds 16 hardwired zones (EOL resistor supervised) to the ELK M1 controller. It operates on the 4-wire data bus and features flash memory which allows field updating of its operating firmware. Up to 12 zone expanders may be connected, increasing the total zone inputs to 208.
M1 CROSS PLATFORM CONTROL
ELK Products, Inc. designs and manufactures premium quality electronic equipment for the professional security and automation installer. ELK's M1 Cross Platform Control Family integrates rock solid security and full featured automation providing convenient user interfaces and remote control options. M1 can be integrated with other manufacturers systems for complete control of home or business.
|
Specifications
|
|
ELK M1 16 Zone Input Expander Installation Guide (.pdf)
FEATURES:
- 16 EOL resistor supervised hardwired zones (resistors included)
- Operates on the 4-wire data bus
- DIP switch address settings
- Plug-in terminal strips
- Status and diagnostics LED
- On-board EOL bus termination jumper
- Vertical mounting using included ELK hardware
SPECIFICATIONS:
- Inputs: Plug-in terminals with elevator-style wire clamps and screws
- Operating power range: 9 to 14 VDC
- Current draw: 65 mA
- Size: 6" x 3.25" x .75"
|
|
|
|
|
|
|
|
