ELK Audio Amplifier, 10 Watt
ELK800
The ELK800 is a great compact audio amplifier. It may be connected to virtually any audio source, i.e. telephone system, computer sound card, ...
Price: $52.95
|
|
 Product Description
|
ELK AUDIO AMPLIFIER, 10 WATT
AMPLIFY SOUNDS UP TO 10 WATTS!

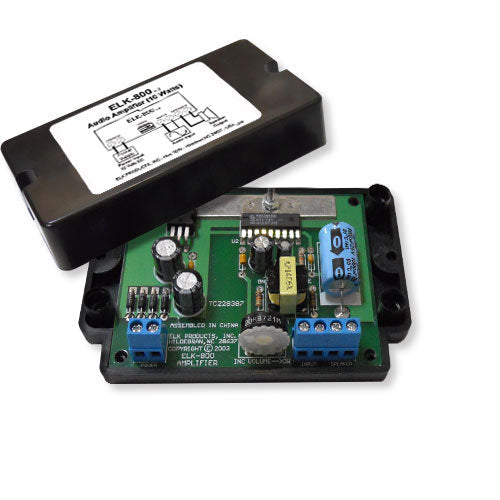

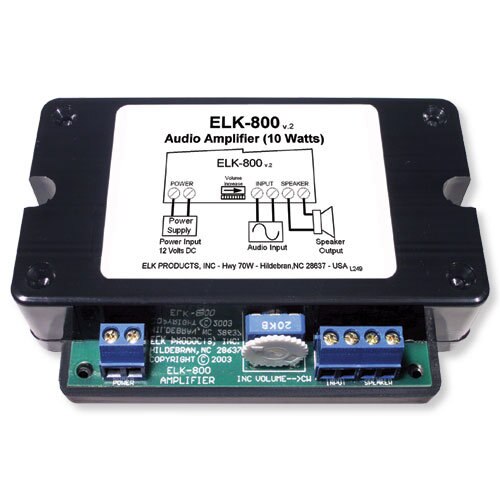

The ELK800 is a great compact audio amplifier. It may be connected to virtually any audio source, i.e. microphone, radio, computer sound card, telephone system paging output, etc., even an ordinary single line phone set. The audio source is amplified up to 10 watts, adjustable from an on-board volume control. Remotely installed, it saves money by requiring only 22 - 24 gauge telco or alarm type wire. It operates on 12 -24 volts AC or DC and has built in volume adjust. It can also drive multiple speakers.
PREMIUM PRODUCTS FOR SECURITY AND AUTOMATION
ELK Products, Inc. designs and manufactures quality electronic equipment for the professional security alarm and home automation installer. Our products include siren drivers, speakers, relays, timers, programmable controls, surge suppressors, telephone equipment, amplifiers, recordable units, batteries and more.
|
Specifications
|
|
ELK Audio Amplifier, 10 Watt Instruction Guide (.pdf)
FEATURES:
Self-Contained 10 Watt Amplified Speaker. Amplifies Virtually Any Audio Source. Expanded Telephone System Paging. Does Not Require 25 or 70V Line Transformers. Attractive ôNo-Grill" Surface Mount Enclosure. May be Painted or Wallpapered. Drives Up to Three (3) Additional 8 Ohm Speakers. Built-in Volume Control. Electrical ôJ" Box Mounting Holes. Mounting Hardware Included.
SPECIFICATIONS:
Rated Output: 10 Watts Operating Voltage: 12 to 24 Volts AC or DC Speaker (Output) Load: 2 to 16 Ohms Current Draw: 50 to 800 mA, Depending on Load and Volume Setting Input Impedance: 1000 Ohms Nominal Enclosure Size: 4.5" x 3" x 1.2" (111.8mm x 76.3mm x 29.2mm)
|
|
|
|
|
|
|
|
