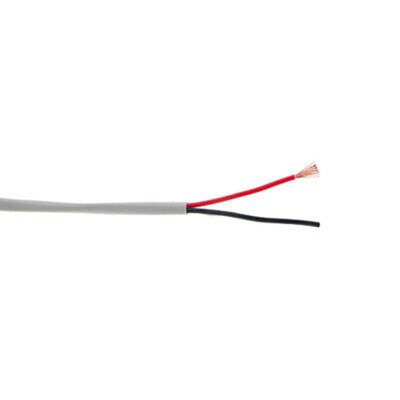

Communication Security Wire, 18AWG, 2C, Unshielded, 1,000'

Wire for Security & Audio Applications

Ideal for various security applications, this Communication Security Wire (18AWG, 2C, Unshielded, 1,000') can be used for alarms, intercoms, audio, signaling, and other power-limited control requirements. The wire's two unshielded, stranded bare copper conductors are insulated within a PVC jacket. It includes a ripcord and the SCP Cable Labeling System for easy identification, and comes in boxes of 1,000 feet.

• AWG (American Wire Gauge): 18
• Conductors: 2 (Red and Black for + and -)
• Jacket Color: White
• Package: Box
• Applications: Security systems, Intercom systems, Sound/Audio systems, Power-Limited controls.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

• Manufacturer Part #: 18/2-WT
• Marking: STRUCTURED CABLE PRODUCTS – – – P/N 18/2 – – – 2 COND 18 AWG STRANDED TYPE CMR/CL2R FT4 75C — (UL) OR C(UL) E198137 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXXFT
• Regulatory: UL 444, NEC Article 760, NEC Article 725
• Application: Security Cable

Construction Characteristics

Conductor

• Material: Stranded Bare Copper
• Size: 18AWG X 2C
• Construction: 16/0.24mm ±0.004mm

Insulation

• Material: PVC
• Min. Thickness: 0.27mm
• Avg. Thickness: 0.30mm
• Diameter: 1.70mm ±0.05mm
• Colors: Black and Red

Jacket

• Material: PVC
• Min. Thickness: 0.50mm
• Avg. Thickness: 0.55mm
• Diameter: 4.40mm ±0.10mm
• Rip Cord: Nylon
• Color: White

Electrical & Physical Characteristics

• Rating: 75°C 300V
• Conductor Resistance: Max 24.4ohm/km at 20°C
• Dielectric Strength: Min AC1.5KV
• AC Leakage Current Through Overall Jacket: AC 1500V
• Cold Bend Test: -20°C 4 hours; No Cracking

Insulation

• Unaged:
• Tensile Strength: 13.8Mpa
• Elongation: 150 percent
• Aged:
• Tensile Strength: 11.7Mpa (100°C 168h)
• Elongation: 80 percent (100°C 168h)

Jacket

• Unaged:
• Tensile Strength: 13.8Mpa
• Elongation: 150 percent
• Aged:
• Tensile Strength: 11.7Mpa (100°C 168h)
• Elongation: 80 percent (100°C 168h)

»WR182SP10-Specifications (.pdf)
