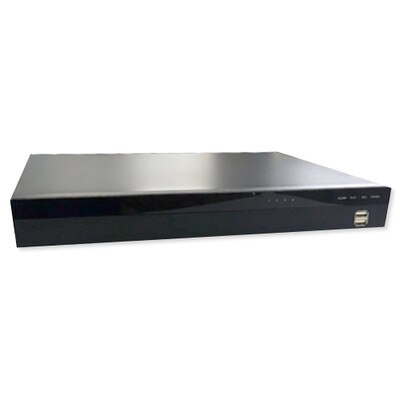

Channel Vision Network Video Recorder (NVR), 4-Channel
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Record & Playback Hi-Res IP Camera Footage
Designed as an exceptionally flexible recording solution, the Channel Vision Network Video Recorder (NVR) features a variety of modes to suit different surveillance requirements. Setup is also made easy by the NVR’s automatic networking feature. Just plug it in and the NVR will automatically find your IP cameras and add them to the network. The 4-channel NVR supports four IP cameras up to 5 megapixels each and works with HDMI as well as the ONVIF protocol. It additionally features an RTSP stream input to allow third-party cameras to integrate with its recording functions.
- Supports one 5 megapixel IP camera for each channel
- HDMI video interface for top quality recording
- View real-time 1080p video via Internet browser or mobile app
- Three recording modes: manual, scheduled, and alarm
- Built-in time and event search functions
- Four online clients with independent remote control
Available Hard Drive Options: No Hard Drive, 1000GB, 2000GB, 3000GB, 4000GB
Three Recording Modes
The video recorder offers three different recording modes to suit any surveillance application. In Manual mode, you can manually turn recording on and off. In Scheduled mode, recording begins and ends based on your set time points. And with Alarm (Event-Triggered) mode, you can program the recorder to activate upon specific events such as motion detection, video loss, external alarm, and digital input from camera.
Watchdog Monitoring Ensures Reliable Surveillance
The Channel Vision Network Video Recorder features watchdog monitoring technology to make sure recording doesn’t stop without your knowledge. If an error occurs, for example, the NVR will automatically restart to maintain accurate recording.
Total Package Solution
Channel Vision has been a leading manufacturer of RF video distribution products, structured wiring enclosures and modules, home intercoms, security cameras, and high-performance audio/video distribution systems since 1993. Channel Vision manufactures a growing list of products designed to make today’s homes more convenient, safe, and innovative.
Specifications
Product Features
- Supports 4TB HDDs x2, each up to 4TB
- Supports CMS (Central Management System) control
- Audio backup for all channels
- Supports time-point backup function under Ethernet remote control mode. User can select any time period to process backup from remote side.
- Supports time-search and event-search under Ethernet remote control mode.
Technical Details
- Manufacturer Part #: NVR-04N (No Hard Drive) or NVR-04N-x000 (With Hard Drive)
- Color: Black
- Power Input: DC48V 12V, 4.16 Amps
- Power Output: RJ-45 x4, PoE 802.3at
- Max. Power Supply: 60W
- IP Cam Video & Audio Input: 4 channels
- Screen Split Control: 1, 4
- Recording Mode: Manual / schedule / alarm
- Search Method: Date / Time / Event
- Backup Type: USB
- Monitoring: Watchdog
- Internal HDD Support: SATA HDD x 2
- Audio in: Back: 3.5mm phone jack
- Audio out: Back: 3.5 mm phone jack
- Language: English / Traditional Chinese / Simplified Chinese / Russian / Italian / Japanese / Czech / French / German / Spanish / Portuguese / Dutch / Slovak / Finnish / Thai / Turkish / Vietnamese / Greek / Hungarian / Slovene
- Connector: WAN Ethernet: RJ-45 x1, 10/100/1000 Mbps
- LAN Ethernet: RJ-45 x4, 10/100 Mbps
- Video Output: HDMI x1 / VGA x1
- USB 2.0: Front: 2 ports / Back: 1 port
- Weight: 2KG
- Dimensions: 360(W) x 44(H) x 301(D)
- Approvals: FCC
- Warranty: 3 Years
Features List
- Daylight Saving Time: Yes
- Watermark: Yes
- Privacy Mask: Yes
- PTZ Control: Yes
- Digital Zoom: Yes
- Motion Detection: Yes
- Video Loss Detection: Yes
- Alarm Recording: Yes
- Pre-Alarm Recording: Yes
- Buzzer: Yes
- External USB Device: Yes
