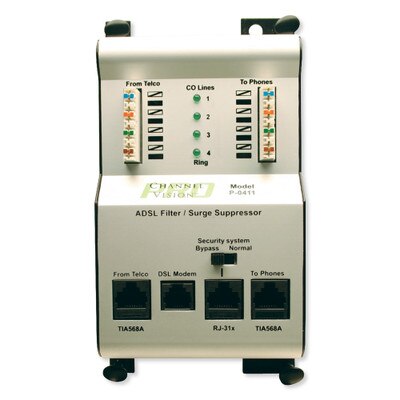

Channel Vision DSL Filter & Phone Surge Protection Module

One Per House (Not 1 Per Phone)

If your home uses an ADSL telephone/data service, use the Channel Vision DSL Filter and Phone Surge Protection Module to filter out noise on the line and protect connected phones and other devices from surge damage. The module also features an RJ-31X security system interface, so you can integrate your phones into a home security system.

• Filters data noise from all household phones
• Blocks surges at the Telco point of entry
• Active line and surge LED indicators
• Compatible with ABUS paging
• Mounts into a structured wire enclosure

Because one Protection Module covers the whole home, this unit eliminates the need for multiple filters. It has four lines in/out, including two 110 connections and RJ-45 ports. There is also an RJ-31X port for security systems requiring a telephone interrupt line.

Total Package Solution

Channel Vision has been a leading manufacturer of RF video distribution products, structured wiring enclosures and modules, security cameras, high performance audio/video distribution systems since 1993. Channel Vision manufactures a growing list of products designed to make today’s homes more convenient, safe, and innovative. Channel Vision Central – structured wire systems, Aria – multi-room audio distribution, and Channel Vision Technology – home-theater and security products, combine to make Channel Vision a total packaged solution.

• Telco Inputs: 2 (1-RJ-45 and 1-110)
• Outputs: 2 (1-RJ-45 and 1-110)
• RJ-45 Pinout: TIA568A
• Dimensions: 3.0(W) x 6.5(H) x 1.25(D) inches
• Insertion Loss: < 0.5dB at 1020Hz
• Attenuation:
• 30KHz,200KHz,300KHz > 65dB
• 500KHz,1104KHz > 55dB

Features

P-0411

Generic DSL Filter

Feature: Removes DSL noise from phone line

P-0411: Yes

Generic DSL Filter: Yes

Feature: Number of units needed for an install

P-0411: 1 per house

Generic DSL Filter: 1 per house

Feature: Provides self-healing surge protection

P-0411: Yes

Generic DSL Filter: No

Feature: Provides RJ-31x jack for security panel connection

P-0411: Yes

Generic DSL Filter: No

Feature: Mounts into a structured wiring enclosure

P-0411: Yes

Generic DSL Filter: No

»Channel Vision P-0411 DSL Filter & Phone Surge Protection Module Installation Manual (.pdf)
