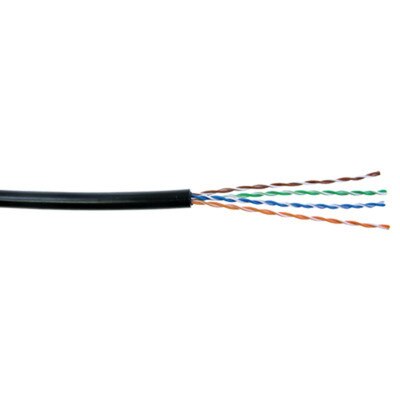

Cat5e Cable, Direct Burial, 1,000'
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Strong, Flexible Cat5e Cable Rated for Direct Burial
Ideal for carrying signals primarily used in structured wiring, computers, and networks, this Cat5e Cable (Direct Burial, 1,000', Standard) is a UTP (unshielded twisted pair) cable (350 MHz 24 AWG) with insulated solid bare copper conductors in a UV-resistant LLDPE jacket. The jacket is CMX rated for direct burial without conduit, providing high impact protection and superior puncture resistance to support underground wiring applications. The round, flexible cable also features mylar and water blocking tape for moisture resistance. The cable includes a ripcord and the SCP Cable Labeling System with sequential markings for easy identification, and comes in spools of 1,000 feet.
- Cat5e cable in a UV-resistant LLDP jacket rated for direct burial
- Ideal for use in structured wiring, computers, and networks
- Meets TIA/EIA 568-C.2 Cat5e and ISO/IEC 11801 Ed2 Class D standards
- Solid bare copper center conductor (24 AWG, 350 MHz)
- High-density polyethylene (HDPE) insulation surrounds conductor
NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.
Quality Installations Deserve Quality Products
Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.
Specifications
- Manufacturer Part #: CAT5E-DB
- Sheath Printing: STRUCTURED CABLE PRODUCTS – – – P/N CAT5E-DB – – – CAT5E DIRECT BURIAL ENHANCED 350 MHz 4 PR 24 AWG SOLID UTP WATER BLOCKING TAPE LLDPE VERIFIED TO ANSI/TIA-568-C.2 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXX FEET MM/YY
- Category: U/UTP- WBT CAT5E-4P-PE
- Test Standard: ISO/IEC11801, TIA-568-C.2 YD/T1019
- Conductor:
- Material: SOLID-Bare Copper
- Nom. O.D.: 0.5 mm, ±0.005 mm
- Insulation:
- Material: HDPE
- Diameter: 0.87 mm ± 0.03 mm
- Screening Material: Mylar plus Water Blocking Tape
- Sheath:
- Thickness: 0.60 ±0.05 mm
- External O.D.: 5.8 mm ± 0.4 mm
- U.V Stability: U.V Resistant
- Material: LLDPE (complies RoHS)
- Color: Black
- Surface Printing:
- Letter Height: 3.0 mm ±0.3mm
- Color: White
- Print Error / Space: <= ±0.5 percent, 1m
- Core Color:
- White: Blue/Blue
- White: Orange/Orange
- White: Green/Green
- White: Brown/Brown
- Packing: Wooden reel
- Weight: NW: 9.3kg; GW: 10.8kg
- Packing Length: 305m ±1.5m
- Rip-Cord: Yes
- Drain Wire: No
Sheath Physical Properties
- Before Aging:
- Tensile Strength: >=10.0 Mpa
- Elongation: >=350 percent
- Aging Period: 100°C x 24hrs x 10d
- After Aging: Elongation: >=300 percent
- Cold Bend Test: -20°C 4 hours; No Cracking; 8x Cable O.D.
Electrical Characteristics (20°C)
- Delay Skew: <=45 ns/100m
- Velocity Of Propagation: 68 percent
- DC Resistance Max: 9.38 ohms/100m
- DC Conductor Resistance Unbalance Max: 5.0 percent
