Cabletronix 1 GHz Multi-Media Drop Amplifier with Passive Return
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Features 6KV Surge Protection On All Ports

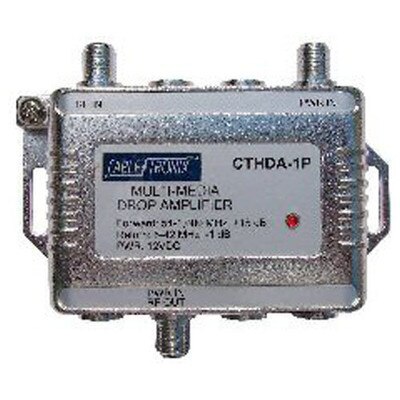

The CTHDA-1P is a wall mounted 1GHz multi-media drop amplifier for use in CATV systems that require two way multi-media networking. This is a low noise amplifier with high isolation between ports, 6KV surge protection on all ports, electrostatic discharge protection, and zinc die cast housing to prevent RFI. The amplifier can be remotely powered over coax, line powered through an RF port, or externally powered through a "power-in" port.
This package contains:
- One CTHDA-1P Drop Amplifier
- One CTHDA power supply
- One CTHDA installation manual
Versatility From Cabletronix
Multiple CableTronix modulator models are available for one, two, three and four channels, as well as with A/V loop through capbility on single and dual channel models.
Specifications
- Number of Input Ports: 1
- Number of Output Ports: 1
- Forward Path: 54-1,000 MHz
- Reverse Path: 5-42 MHz
- Forward Gain: 13.5dB
- Reverse Gain (Loss): -1.6dB
- Isolation (out-out): NA
- Noise Figure: 3dB Typical, 4dB Max
- Return Loss (In-out): 18dB Typical
- Power Supply Voltage: 12-16V, 200mA
- Surge Protection (All ports): 6KV
- Connections: F Type Female
- Impedance: 75 Ohms
- Operating Temperature: -40° C to +60° C
