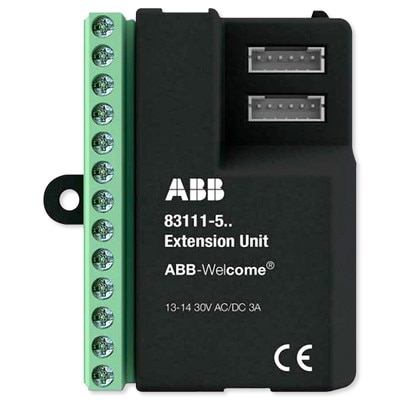

ABB-Welcome Audio Extension Unit

SKU: ABB83111500

Usually ships in 1-2 days.

$161.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Connect More Buttons to the Audio Integration Unit

Designed to extend the capabilities of the ABB-Welcome Audio Integration Unit (sold separately), the ABB-Welcome Audio Extension Unit allows you to connect up to 12 additional pushbuttons of your third-party mailbox or bell system, so that visitors can use those pushbuttons to initiate calls with your ABB Door Entry System. The extension unit provides 12 binary inputs for the buttons, as well as an interface for the connection of keypad extensions. With the aid of the keypad extensions (not included), the unit can be extended to a maximum of 99 inputs.

NOTE: Requires 2-wire connection to the Audio Integration Unit (83110-500), sold separately.

About the ABB Door Entry System

Also known as the "Welcome" system, the Door Entry System is a first-of-its-kind modular intercom and access control system that offers one flexible solution for any intercom and entry security application. Customizable, nearly endlessly scalable, and easy to install, the system is perfect for any building, from a small single-family home to a huge residential complex.

System Features:

  • Complete intercom and access control solution for any building
  • One system supports up to 60 buildings and 250 stations per building
  • Connections require only 2 wires for ultra-flexible installations
  • Standard range up to 1,968 feet (600 m), extends with power boosters
  • Free mobile apps for iOS and Android provide remote intercom access
  • No fees required to enable Internet connection – ABB provides servers

Station Features:

  • Modular outdoor stations allow easy customization and repairs
  • Pre-assembled outdoor stations facilitate quick installation for standard applications
  • Optionally install ABB indoor stations and/or use mobile devices as indoor stations
  • Indoor stations optionally support door strike release for remote unlocking
  • Optionally select indoor stations with built-in induction loops for hearing aid users

How to Build Your System

Every ABB Door Entry System needs at least two components: a System Controller (either standard or mini) and an Audio Module (any variation). With these two foundational components, the system can be expanded and customized as needed. Additional system components may include:

  • Custom Modular Outdoor Stations
    • Audio Module (speaker/mic, with or without pushbuttons)
    • Pushbutton Module (with or without built-in card reader)
    • Keypad Module (with or without built-in card reader)
    • Display Module with Built-In Card Reader
    • Camera Module
    • Nameplate Module
  • Pre-Assembled Outdoor Stations
  • Hands-Free Indoor Stations (with or without video screen and/or induction loop)
  • Handset Indoor Stations (with or without video screen and/or induction loop)
  • Guard Unit (specialized station for security monitoring)
  • Mobile Devices (requires Telephone Gateway and/or IP Gateway)
  • Telephone Gateway (for integrating mobile or landline phones)
  • IP Gateway (for enabling remote Internet access)
  • Switch Actuator (for relay control)
  • Camera Interface (for connecting third-party analog cameras)
  • Elevator Lift Control Relay Module (for elevator/floor access control)

Other accessories are also available for installation and connection. Most notably, in order to build a custom modular outdoor station, you will need to select the modules you wish to include in the station, and then match the number of modules to the appropriate size Flush-Mounted Box and Faceplate. (Flush-mounted boxes support optional surface-mounting in addition to flush-mounting. When surface-mounting, a Rain Hood is also required; only optional when surface-mounting.) The screwless, snap-on design of both outdoor and indoor stations makes installation a breeze.

Easy Planning with ABB Configurator

ABB: Power & Productivity for a Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

Specifications

Technical Details

  • Manufacturer Part #: 83111-500
  • Single-Wire Clamps: 2 x 0.6 mm2 – 2 x 1 mm2
  • Multi-Strand Clamps: 2 x 0.6 mm2 – 2 x 0.75 mm2
  • Bus Voltage: 20 – 30 V DC
  • Temperature Range: -13° to 131°F (-25° to 55°C)
  • Dimensions: 2.68(L) x 1.97(W) x 1.34(D) inches (68 x 50 x 24 mm)
  • Warranty: 2 Years

System Capacity

  • 9 Guard Units per System
  • 60 Buildings per System
  • 250 Indoor Stations per Building
  • 9 Outdoor Stations per Building (including gate and other outdoor stations)
  • 2 Locks per Outdoor Station
